Quick reference for available electronics components. For a complete list of available service parts visit Steelcase Product Reference. To review all support documentation, including troubleshooting steps, assembly directions or user guide information, click here.
|

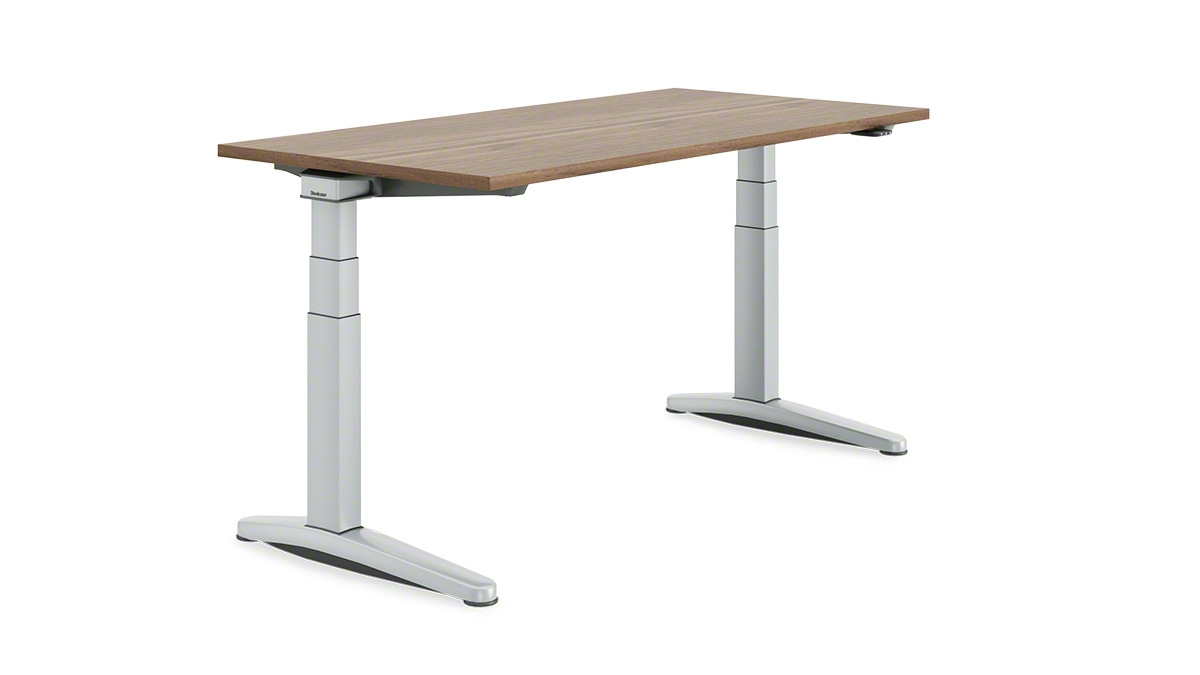

Ology Desk shipped on or after 10/23/23 Lifting Column |
Basic Height: 1506755001SR Extended Height: 1506760001SR |
|
|
Ology Desk shipped before 10/23/23 Lifting Column |
Basic Height: 1106409001SR Extended Height: 24465401SR |
|
| Ology Bench |
Basic Height (LH, Center): 1112273001SR Basic Height (RH): 1112273002SR
Extended Height (LH, Center): 1041141001SR Extended Height (RH): 1041141002SR |
|
|
2-Leg Control 3-Leg Control |

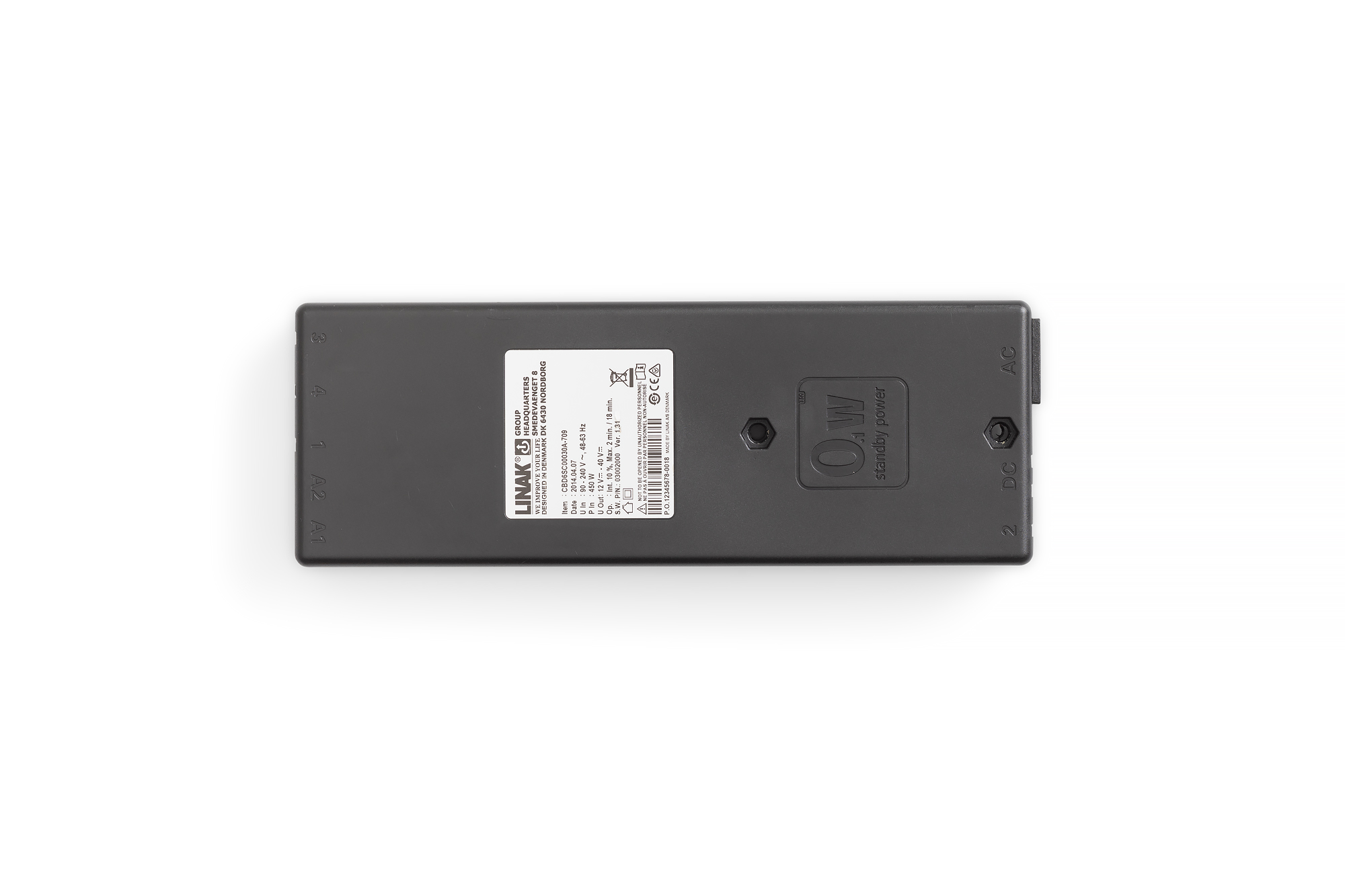

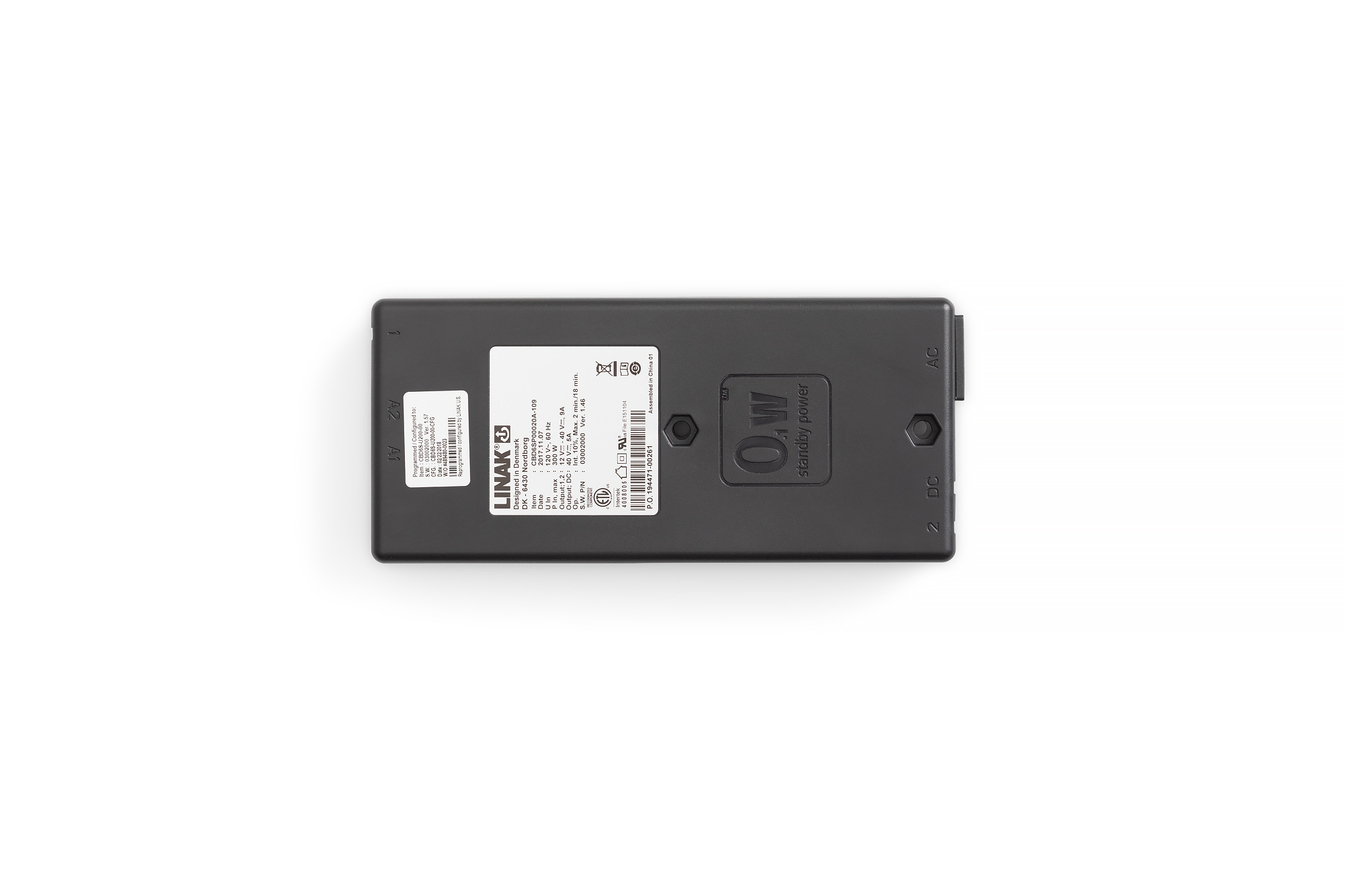

Control Box |
2-leg North America: 841364900SR 3-leg and International: 841300004SR |

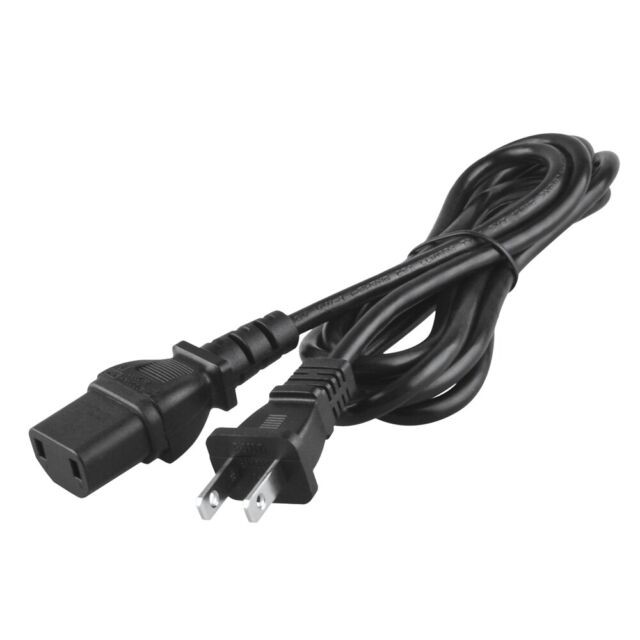

| Power Cord |
North America: 10 feet: 22047301SR Chicago: 22047320SR
International: 10 feet: 25380201SR |
|
|

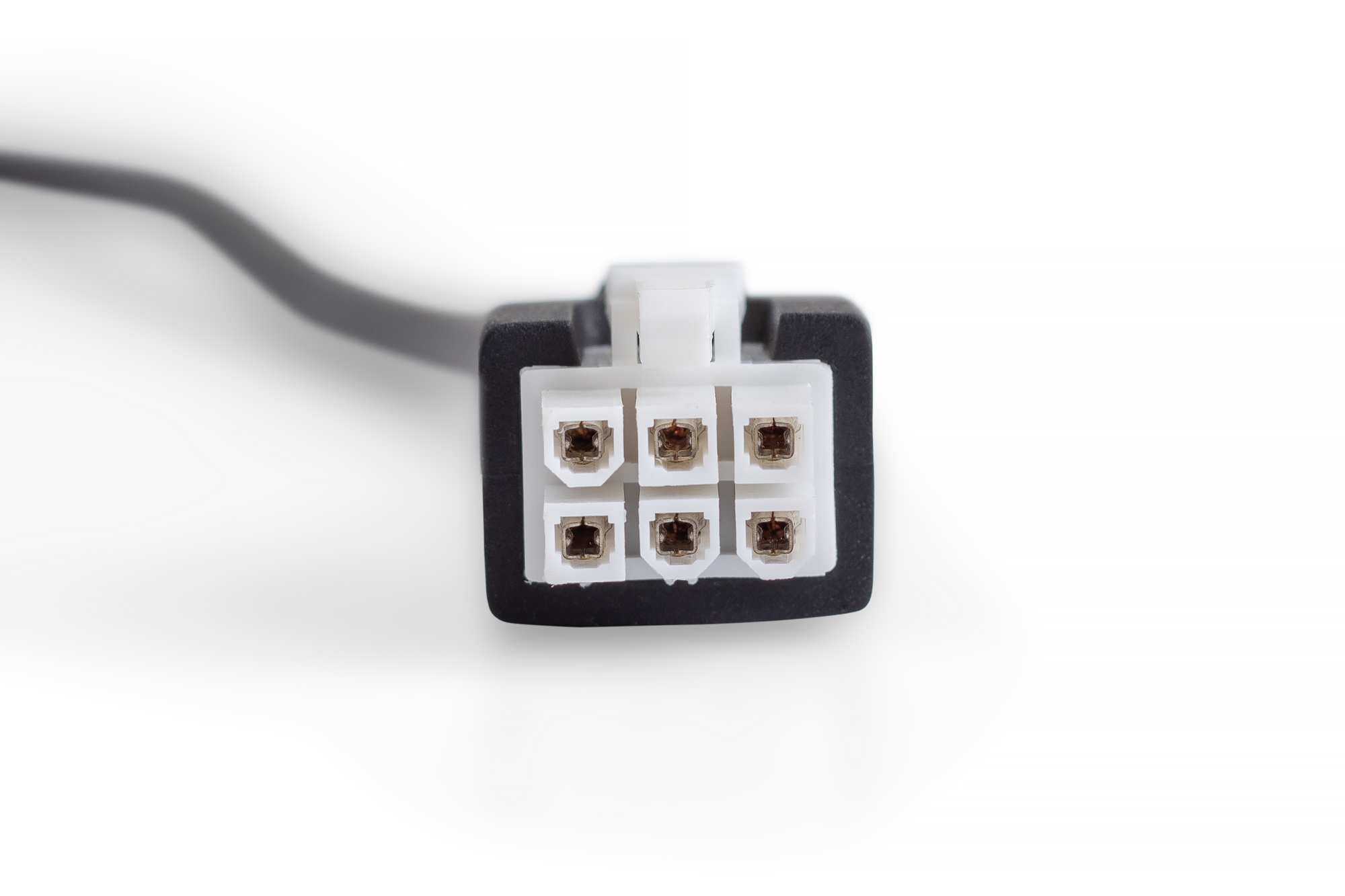

2-Leg Cable Package includes:
|
58”W or smaller: 1503688001SR
Greater than 58”W: 1503688002SR |
|
|
3-Leg Cable Package includes:
|
90°: 1520444001SR
120° 52”W x 52”W or smaller: 1503688003SR
120° greater than 52”Wx52”W: 1503688004SR |
|
|

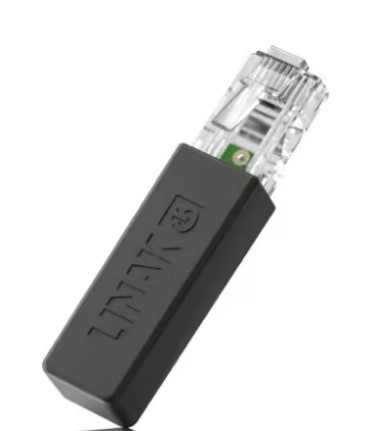

Obstruction Detection Sensor
Tip: Standard on all widths. |
1438965001SR | |
|

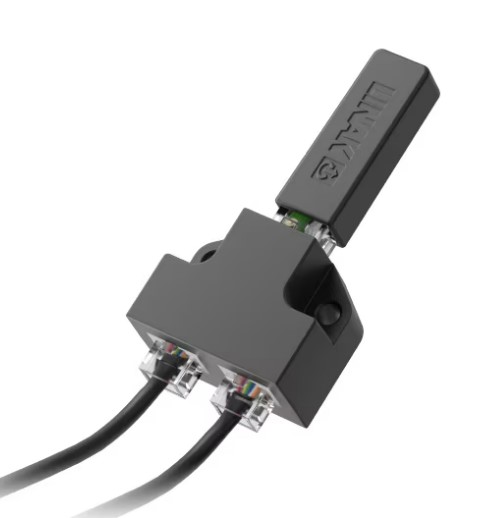

Obstruction Detection Kit includes:
Tip: A second detection sensor, t-splitter and splitter cable is standard on 3-leg corners. |
HAODKT10 | |

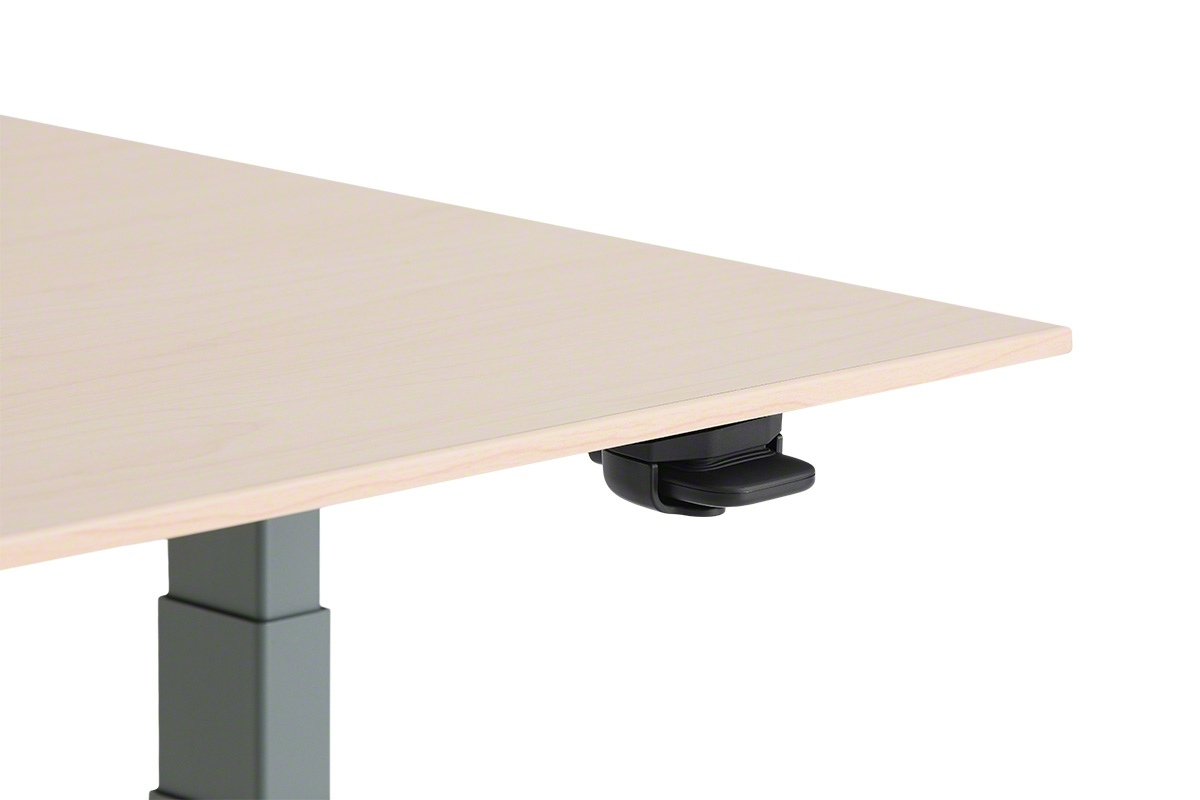

| Simple Touch Controller |
1093294001SR (Non-Antimicrobial) 1093294002SR (Antimicrobial) 1093294003SR (Non-Antimicrobial, International) |
|

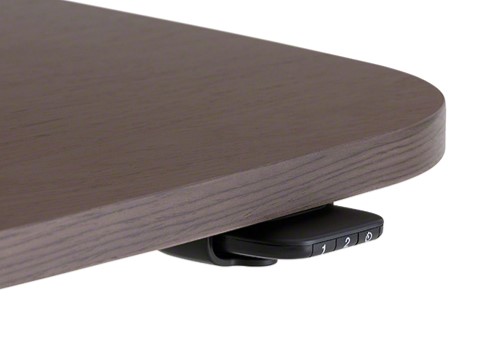

| Active Touch Controller | 1093247001SR | |

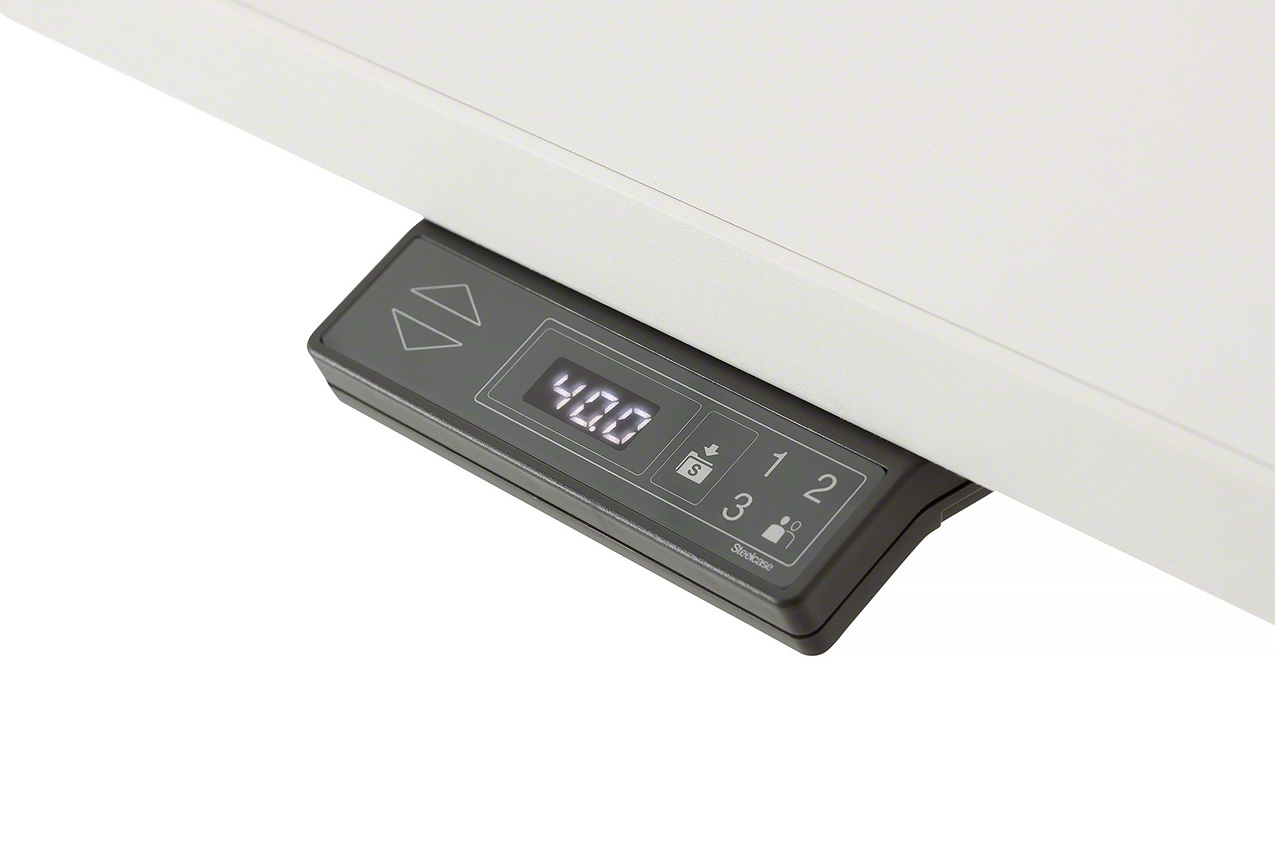

| 4 Preset Controller |
North America: 24316101SR
International: 24316102SR |
