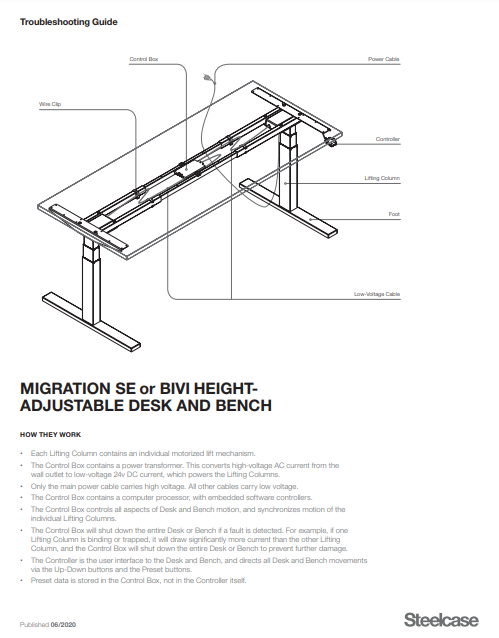

Included in this Article:
- No power to Desk or Bench
- Digital controller does not work of illuminate
- Desk or bench will neither go up nor down
- Desk or bench goes up, but not down (or vice versa)
- Desk or bench does not go through full range of motion
- Lifting columns not synchronized (one is higher than the other)
- Desk or bench movement is not smooth; Lifting columns jerk or hop while raised or lowered
- Error code displayed on digital controller
PROBLEM |
POTENTIAL CAUSE |
POTENTIAL SOLUTION |
No power to Desk or Bench
|
No power at wall outlet |
Check outlet with another device; check circuit breakers/fuses/wiring. |
Power Cable not plugged into wall outlet |
Confirm proper cable engagement into wall outlet. |
|
Power Cable not plugged into Control Box |

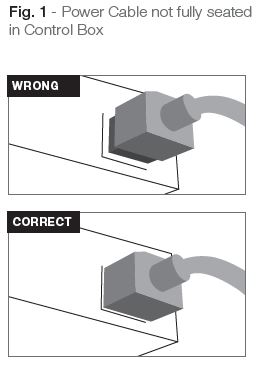

Check that Power Cable is fully seated into Control Box. (see Fig. 1) |
|
Faulty Power Cable |
Inspect the Power Cable for damage; replace any damaged cables |
|
Desk or Bench wiring not properly assembled |
Check that all cables are connected per the Assembly Directions. When first plugged in, the Control Box will click twice to confirm proper connection |
|
Digital controller does not work of illuminate |
No power at wall outlet |
See above |
Control Box has wrong firmware |
Control box firmware must be 1.9 or later for Digital/Preset Controller compatibility. (see Fig 4) |
|
Desk or Bench will go neither up nor down |
No Power |
See above. |
Desk or Bench is severely overloaded |
Maximum weight capcity is 220 lbs (99.8 kg). Overloading the Desk or Bench could lead to damage that would not be covered by warranty. ERROR CODE E24/25/26, E48/49 = Over Current Tip: When calculating lifting capacity, subtract the weight of the worksurface |
|
Control Box requires reset |
Perform initialization procedure. (see Common Procedures) Lower Desk or Bench all the way down, and perform synchronization procedure. (see Common Procedures) |
|
Damaged pins inside multi-pin connectors (Low-Voltage Cable/connector) |

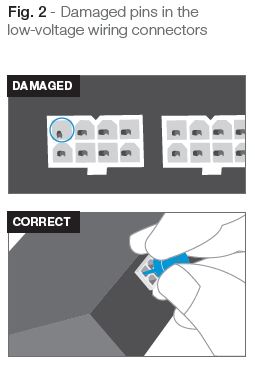

Ensure the Desk or Bench is in ‘Standby’ mode. (>20 seconds of inactivity) Unplug each multi-pin connection point and inspect the pins in the Control Box connector. Are they all straight, and making good contact? If not, try using a push-pin to straighten them. (see Fig. 2) (Otherwise, replace necessary components with undamaged versions.) |
|
Damaged Lifting Column Low-Voltage Cable |
Carefully check the condition of the Low-Voltage Cable of each Lifting Column. (see Fig. 3) If any Low-Voltage Cables are damaged, the entire Lifting Column must be replaced. |
|
Faulty Lifting Column |
To prevent further damage, the Control Box will shut the whole Desk or Bench down if one Lifting Column is faulty. Test Lifting Columns (see step 4 of Troubleshooting Steps), and replace any faulty Lifting Columns. |
|
Faulty Controller (or) faulty Controller receptacle in Control Box |
Swap with Controller known to work (and/or) check operation. |
|
Outdated Digital Controller software |
Control Box firmware before version 1.9 is not compatible with the Digital/Preset Controller. (see Fig. 4) Replace with a new Control Box with firmware 1.9 or later. |
|
Faulty Control Box |
Swap with Control Box known to work. |
|
Desk or Bench goes up, but not down (or vice-versa) |
Damaged pins inside multi-pin connectors (Low-Voltage Cable / connector) |
Unplug Power Cable from wall. Unplug each multi-pin connection point, and inspect the pins. Are they all straight, and making good contact? If not, try using a push-pin to straighten them. (see Fig. 2) (Otherwise, replace necessary components with undamaged versions.) |
Desk or Bench does not go through full range of motion |
Re-synchronize Desk or Bench |
Refer to Lifting Column synchronization procedure. (see Common Procedures) |
Faulty Lifting Column |
Test Lifting Columns per step 4 of the Troubleshooting Steps, and replace any faulty Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting Column may have the same problem at a different height. |
|
Lifting Columns not synchronized (one is higher than the other) |
Re-synchronize Desk or Bench |
Refer to Lifting Column synchronization procedure. (see Common Procedures) |
Faulty Lifting Column |
Test Lifting Columns per step 4 of the Troubleshooting Steps, and replace any faulty Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting Column may have the same problem at a different height. |
|
Desk or Bench movement is not smooth; Lifting Columns jerk or hop while raised or lowered |
Faulty Lifting Column |
Test Lifting Columns per step 4 of the Troubleshooting Steps, and replace any faulty Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting Column may have the same problem at a different height. |
Lifting Columns are not parallel with one another, causing them to bind |
First ensure that glides are properly adjusted, and the Desk or Bench is level. Lift one side of the Desk or Bench off the floor and reposition so that both Lifting Columns are parallel to each other. |
|
Error Code displayed on Digital Controller |
Refer to Error Code listing |
Follow instructions on error code listing; is Desk or Bench functioning normally anyway? Try initializing the Control Box. (see Common Procedures) |
