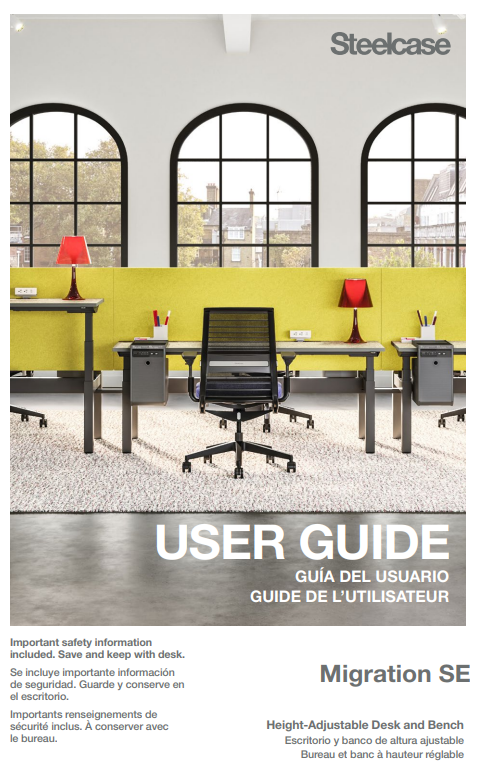

To download the User Guide, click here.
OPERATING THE CONTROLLER

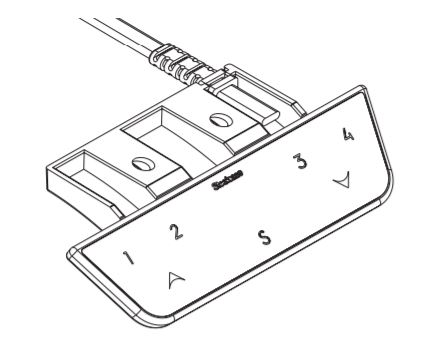

The controller has seven buttons for user control. Two of the buttons are the up and down buttons, controlling the movement of the desk. One of the buttons is the memory button, which is used to set heights to be stored. The remaining four buttons are memory position buttons. The controller also has a digital display, which displays the numerical height of the desk (in inches or cm).
- Press and hold either the up or down button to reach the desired height.
- The desk will continue to move up or down until the user releases the button or the maximum or minimum height is reached.
- To switch to a stored height in memory, use the four memory position buttons. Press the required memory position button and hold it down. The desk will move until it reaches the saved position. If you release the button before the saved position is reached, the desk will stop and the saved position will not be reached.
- OR Double press the required memory button, the display will flash the height of the saved position. The desk will move up or down until it reaches the stored height.
Be sure no people or objects are in the path of the desk. Never allow children to operate this desk as injury or property damage could occur. Remove and secure power cord when not in use to prevent children from operating the desk unsupervised.
STORE HEIGHT INTO MEMORY
- Adjust the desk to the position you want to save. The display will show the desk height.
- To store the height:
- Press the s button. The display will read s.
- Press the required memory position button. The display will read s# (e.g., s2) and chirp to confirm preset saved.
- After 2 seconds the saved desk position will be displayed.
SWITCH DISPLAY FROM INCHES TO CENTIMETERS
- Press and hold the s until S-1 is displayed.
- Use the up and down arrows to switch between S-1 (CM) and S-2 (INCHES)
- Once S-1 or S-2 are on screen press s button.
- Display will flash 3 times and display units will change.
ENABLE AND DISABLE BUTTON LOCK
- Press and hold s until S-1 is displayed.
- Use the up and down arrows to switch display to S-5.
- Press s, display will flash 3 times until display reads LOC.
ERROR CODES
In the event of a fault, the digital display may show an error code. Refer to the troubleshooting guide, click here.
