If your desk is does not adjust all the way up or down.
To download the Troubleshooting guide, click here.
1. SYNCHRONIZE
Synchronize the desk, if you can.
2. POWER CYCLE THE CONTROL BOX
3. CHECK LOW-VOLTAGE CABLES AND CONTROL BOX PINS FOR DEFECTS
- Unplug each Low-Voltage Cable from the Control Box.

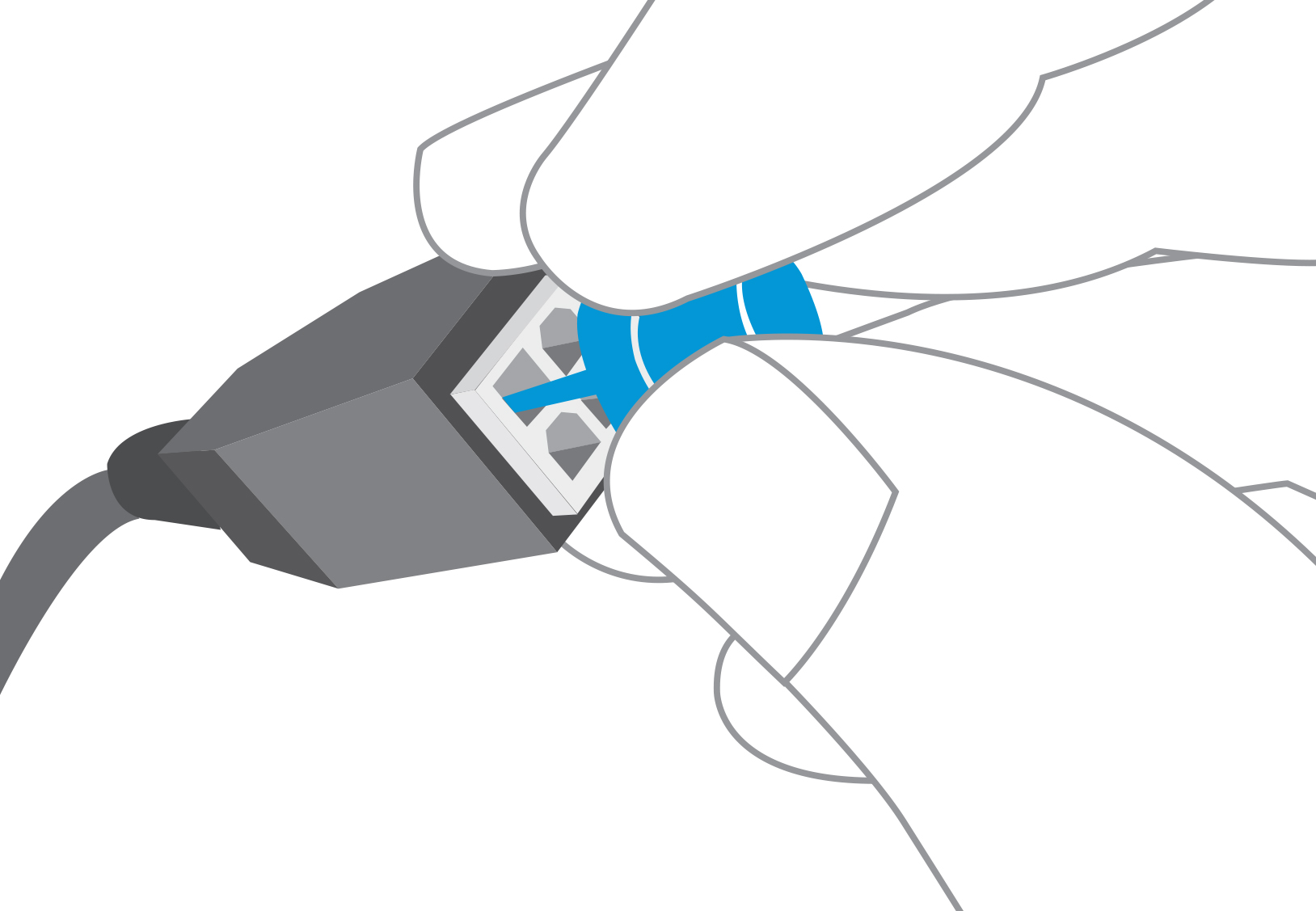

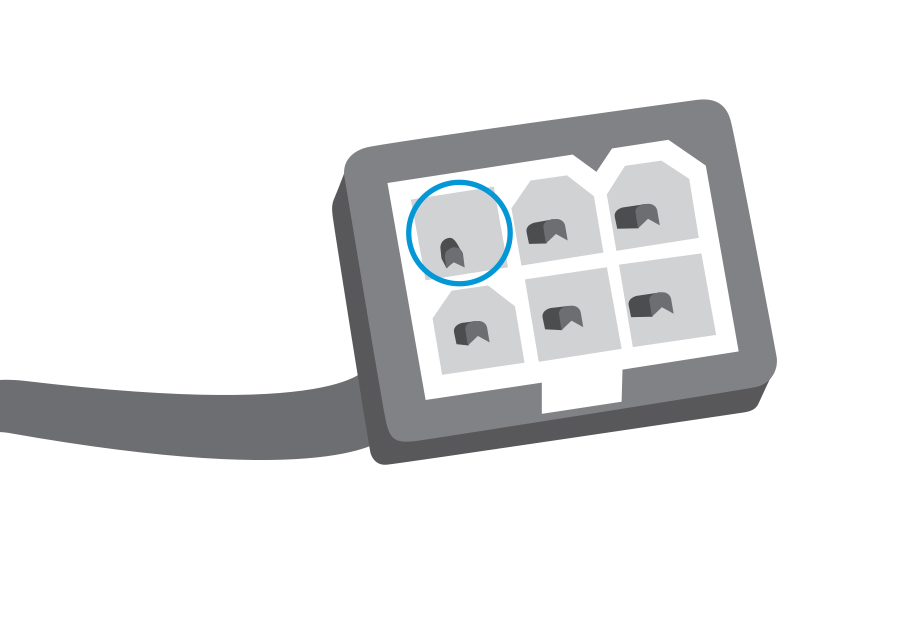

- Inspect the Low-Voltage Cables and Control Box for damaged pins. If any appear bent, use a thumb tack to correct.

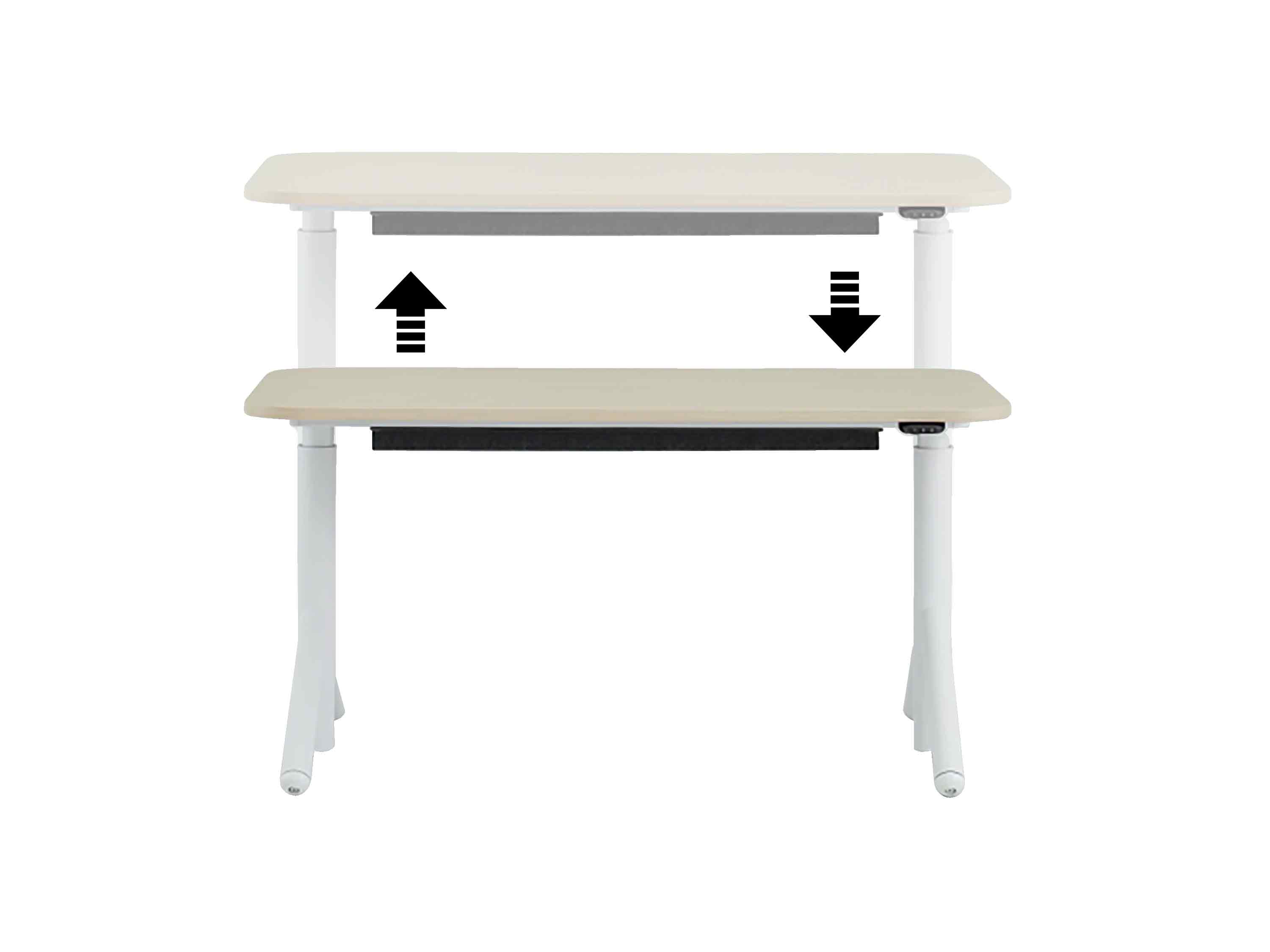

4. ADJUST THE DESK
Adjust the desk up and down. If the desk starts to move, synchronize the desk.

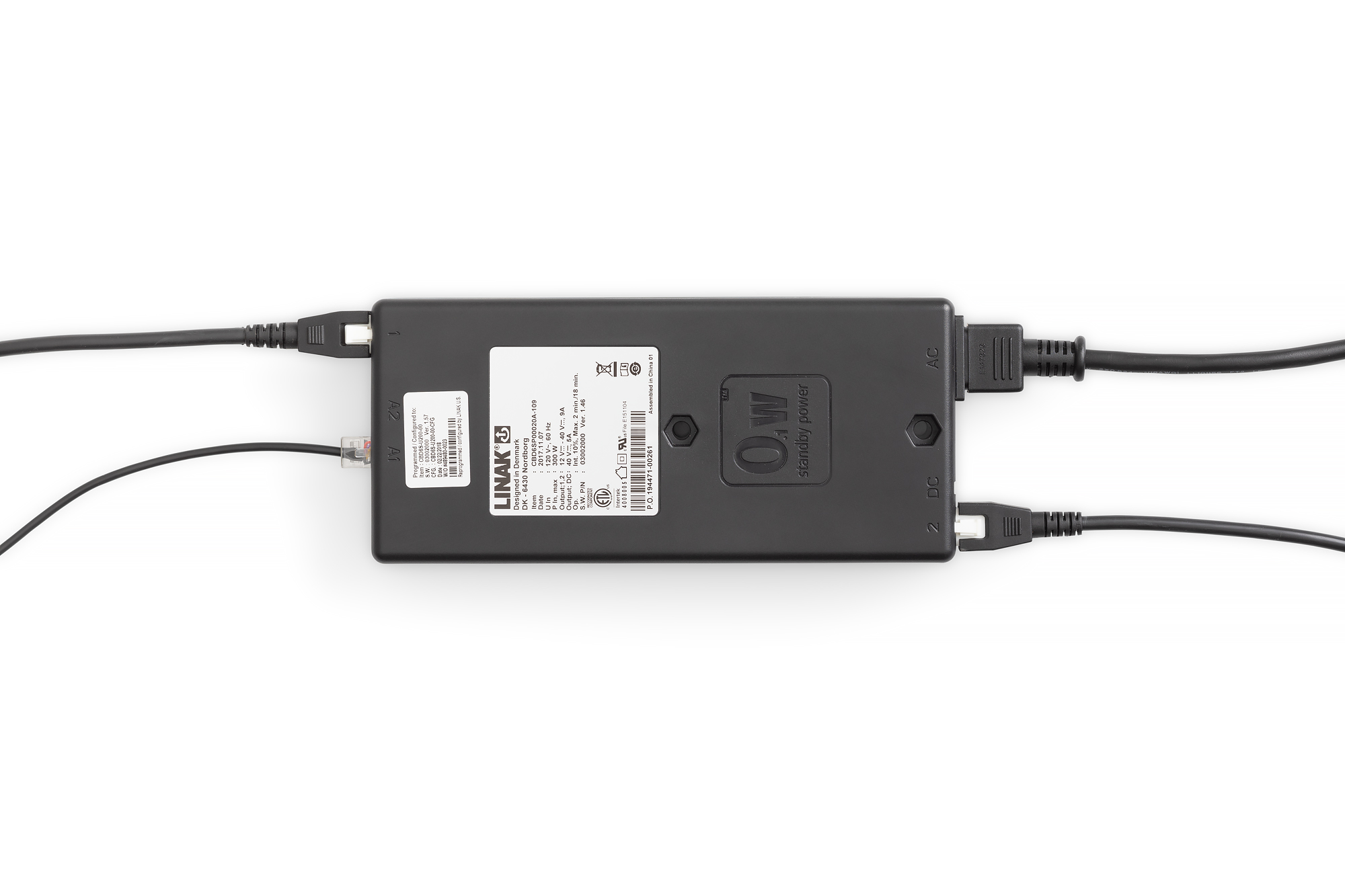

5. CHECK CONTROL BOX
❗️ Service Tech Recommended ❗️
- If the desk still does note adjust properly, check the Control Box by plugging the original Power Cord, Controller and Low-Voltage Cables into the new Control Box.
6. ADJUST THE DESK
- Adjust the desk up and down.
- If the desk starts to move, replace the non-working Control Box.
- After the Control Box is replaced, synchronize the desk.
7. CHECK LOW-VOLTAGE CABLES AND LIFTING COLUMN PINS FOR DEFECTS
❗️ Service Tech Recommended ❗️

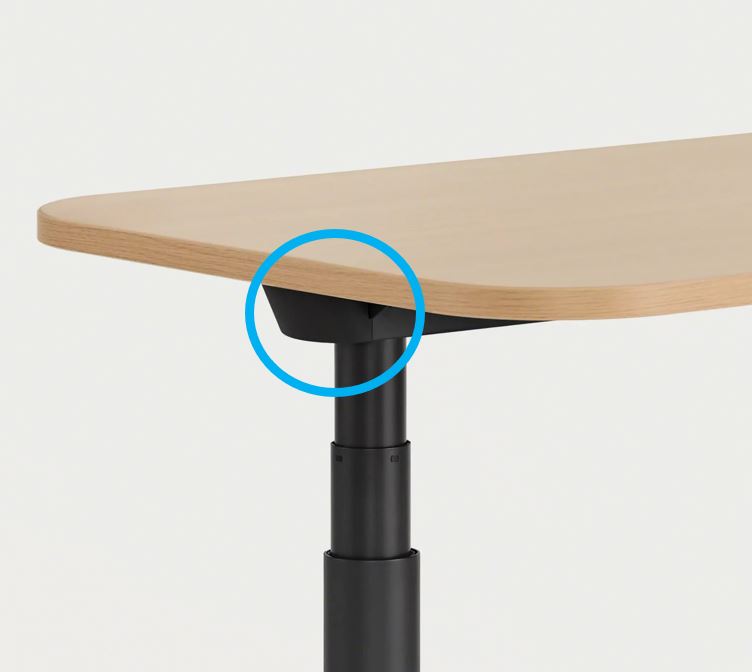

- If the desk still does not adjust properly, remove the end cap to check the Low-Voltage Cable connection at the Lifting Column.
- Tip: Disassembly of the desk will be necessary to access the center Lifting Column on a 3-leg desk.
- Check the Low-Voltage Cable by plugging a new Low-Voltage Cable into the Lifting Column and Control Box.
8. ADJUST THE DESK
- Adjust the desk up and down.
- If the desk starts to move, replace the defective Low-Voltage Cable.
- Tip: Some disassembly of the desk may be required.
- After the Low-Voltage Cable is replaced, synchronize the desk.

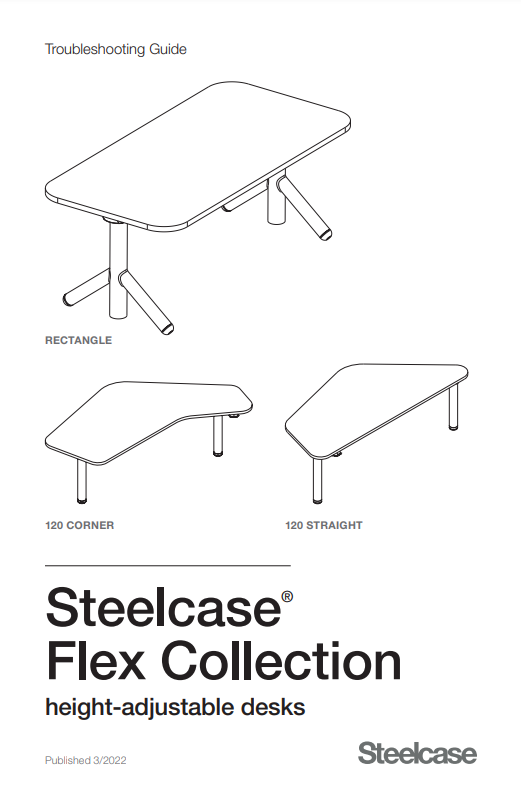

TROUBLESHOOTING GUIDE
