Flex electronic specifications in this article:
- Range of Adjustment
- Distributed Weight Capacity
- 'Wire Management Included
- Controller
- Decibel Rating
- Volts
- Frequency & Phase
- Watts
- Standby Power
- Adjustability Speed
- Duty Cycle

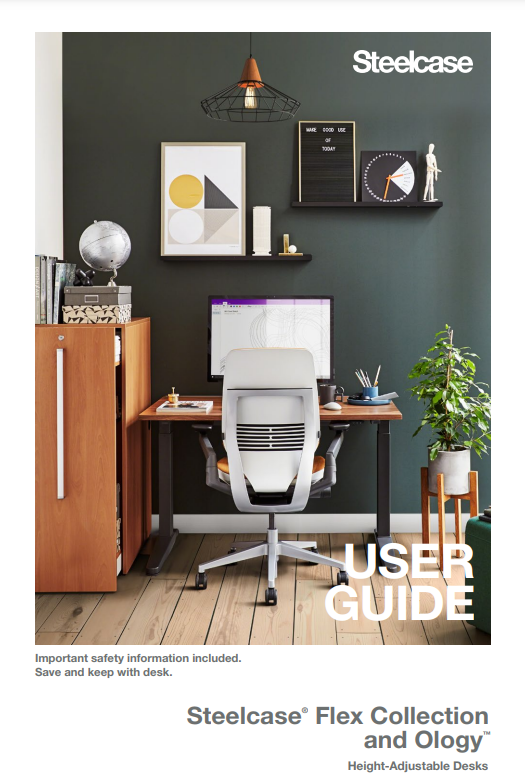

To download the Office User Guide, click here.

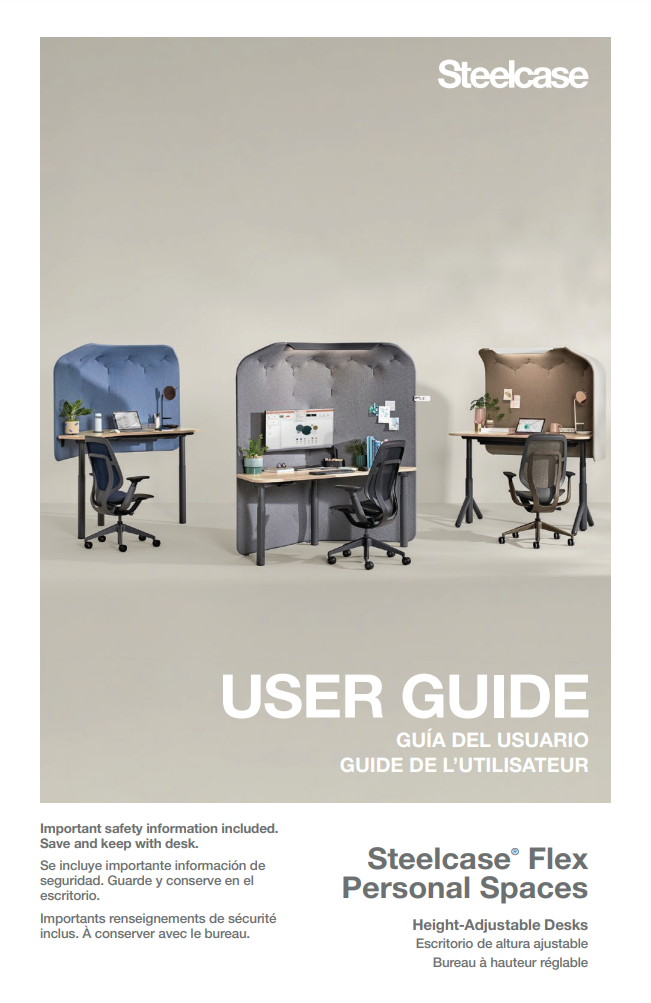

To download the Home Office User Guide, click here.
RANGE OF ADJUSTMENT
Range of adjustment includes 1" thick work surface; alternative work surface thicknesses will alter the height range.
Basic Height: 27.6" – 46.9"(693 mm – 1,179 mm)
Extended Height: 22.6" – 48.7"(574 mm – 1,237 mm)
DISTRIBUTED WEIGHT CAPACITY
When calculating lifting capacity, subtract the weight of the work surface, understructure and options (i.e. integrated rail, power and data access door or soft edge).
Base supports a maximum distributed weight load of:
- 2-leg: 360 lbs (163.3 kg)
See spec guide for weight of each feature or refer to label on the underside of the work surface for weight limits on the desk.
WIRE MANAGEMENT INCLUDED
Yes
CONTROLLER
Simple Touch, Active Touch
DECIBEL RATING
< 45 dBA
VOLTS
- 120V AC
FREQUENCY & PHASE
60 Hz, Single-Phase
Amps
- 2.5A
WATTS
- 300 W
STANDBY POWER
0.1W
ADJUSTABILITY SPEED
1.5"/sec. (38.1 mm/sec)
DUTY CYCLE
10% (2 min. on, 18 min. off)
USER GUIDES
| Office - User Guide | Home - User Guide |
