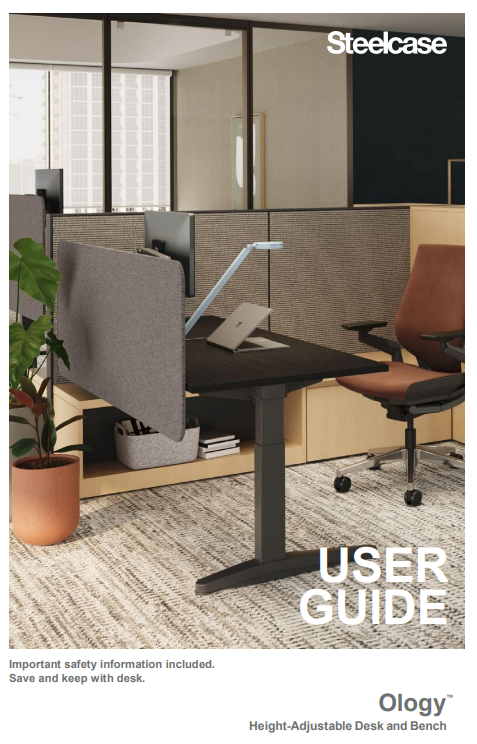

To download the Office User Guide, click here.

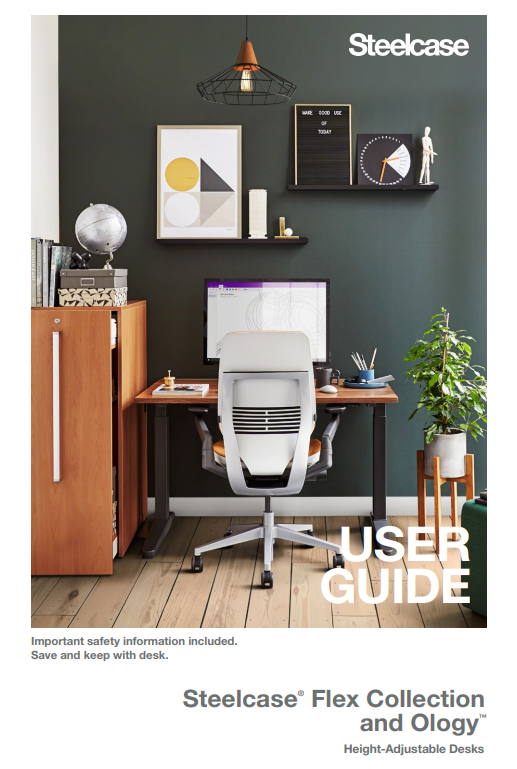

To download the Home Office User Guide, click here.
To download the Height-Adjustable Desks Spec Guide, click here.
|
Range of Adjustment |
Basic Height: 27.3" - 46.4" (693 mm – 1,179 mm) Extended Height: 22.6" - 48.7" (574 mm – 1,237 mm) |
|
Glide Adjustment |
½" (14 mm) Desk 1" (25 mm) optional for Desk |
|
Distributed Weight Capacity Tip: When calculating lifting capacity, subtract the weight of the worksurface. |
2- leg (desk): 360 lbs. (163.3 kg) 3- leg (desk): 500 lbs. (226.8 kg)
2- leg (bench): 314 lbs. (142.4 kg) 3- leg (bench): 471 lbs. (213.6 kg) |
|
Wire Management Included |
Yes |
|
Controller |
Simple Touch, Active Touch, Digital Preset |
|
Decibel Rating |
< 50 dBA |
|
Volts |
2- leg: 120v AC 3- leg: 100-240v AC |
|
Frequency & Phase |
60 Hz, Single-Phase |
|
Amps |
2- leg: 2.5A 3- leg: 3.75A |
|
Watts |
2- leg: 300W 3- leg: 450W |
|
Standby Power |
2- leg: 0.1W |
|
Adjustability Speed |
1.5"/sec. (38.1 mm/sec) |
|
Duty Cycle |
10% (2 min. on, 18 min. off.) |
USER GUIDE
| Office Users | Home Office Users |
