Quick reference for available electronics components. For a complete list of available service parts visit Steelcase Product Reference. To review all support documentation, including troubleshooting steps, assembly directions or user guide information, click here.
|

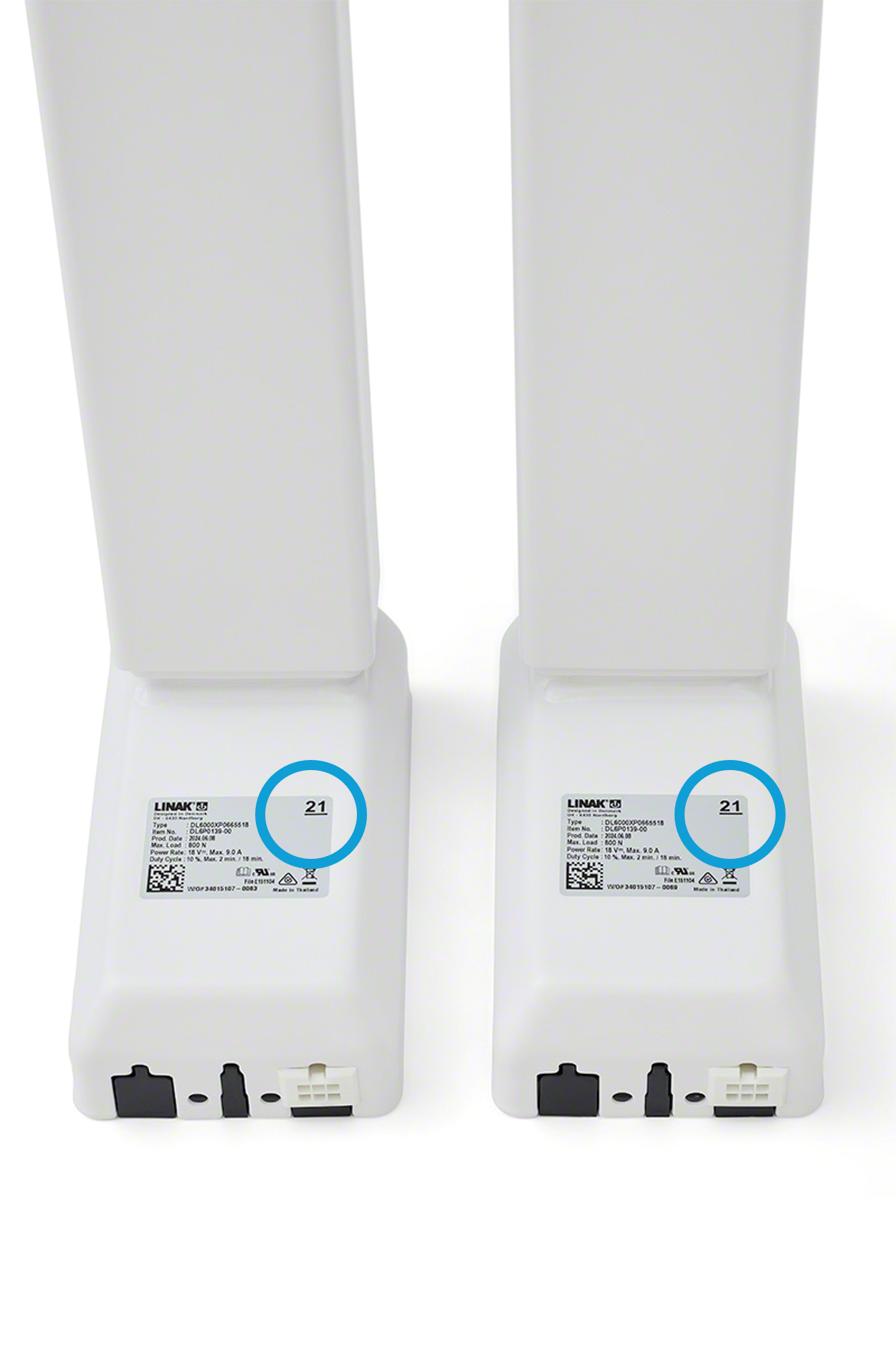

Pro Lifting Column, Extended Height Option: Column Shape Rectangle Column (21) |
1538488001SR | |
|

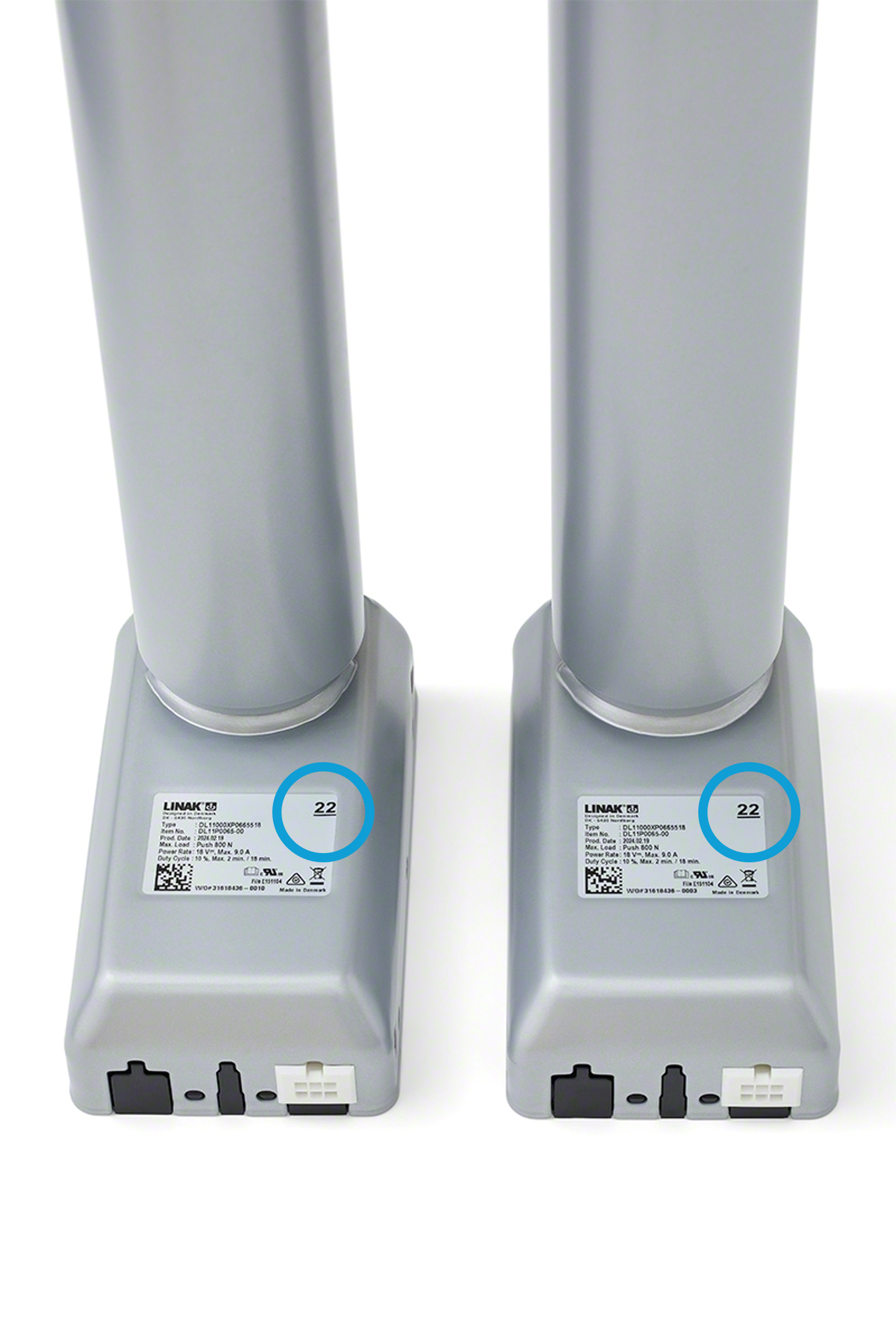

Pro Lifting Column, Extended Height Option: Column Shape Round Column (22) |
1538488001SR | |
|
|

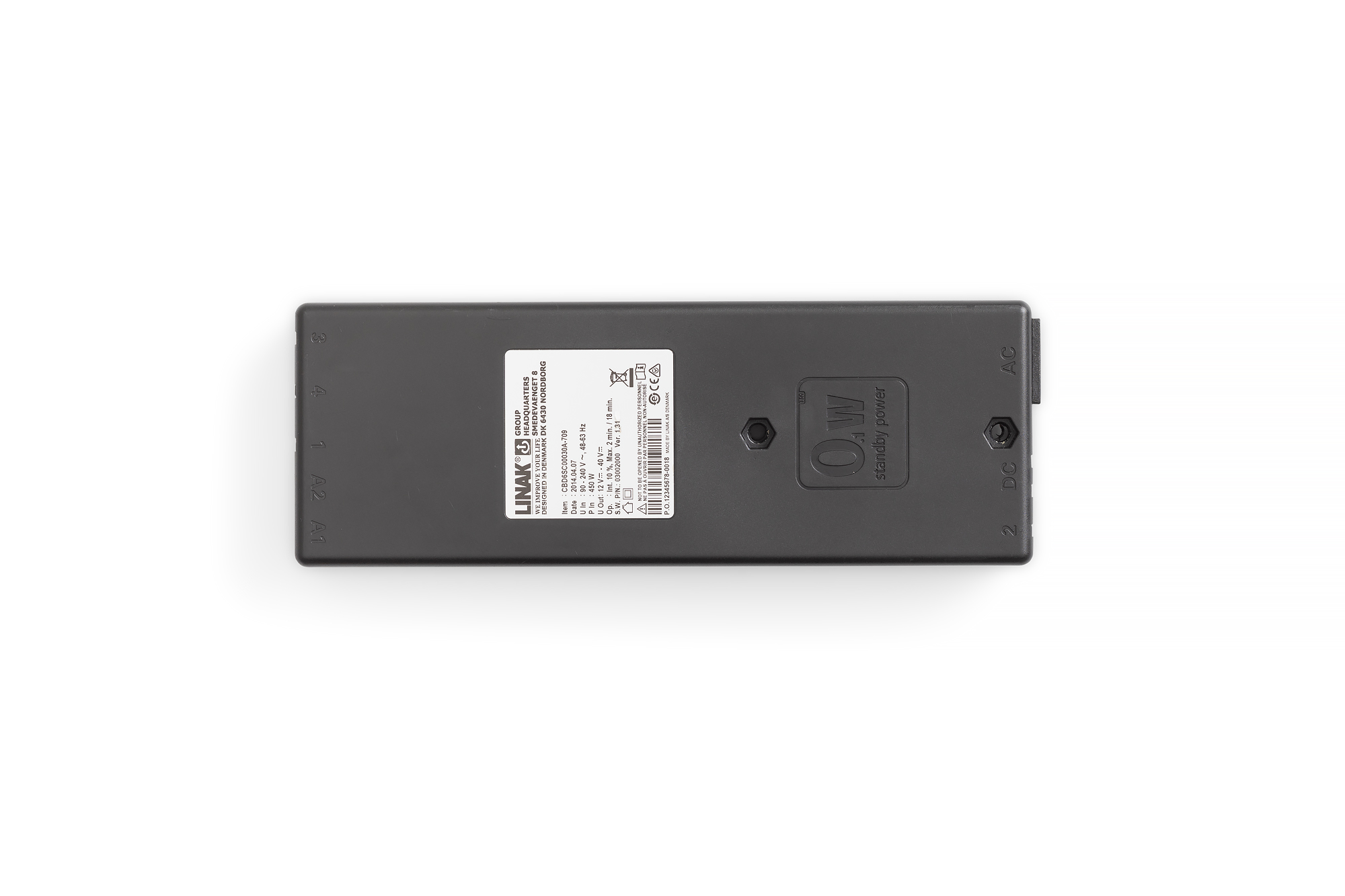

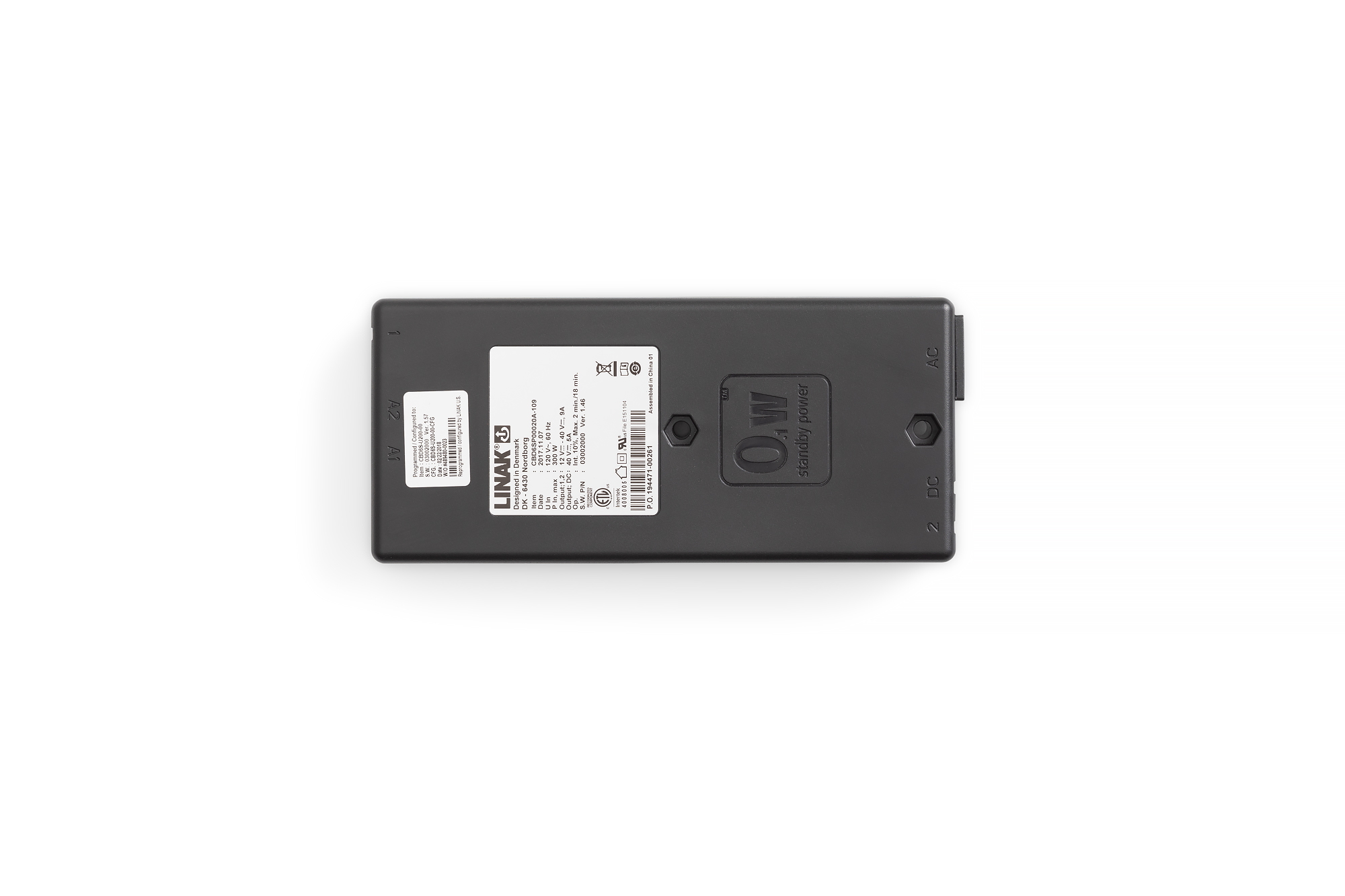

Control Box |
North America, 2-leg: 841364900SR International, 3-leg: 841300004SR |

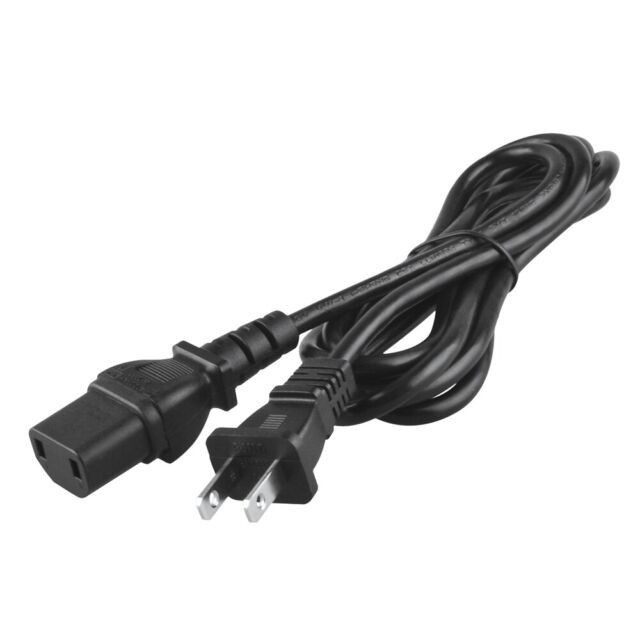

| Power Cord |
North America: 10 feet: 22047301SR 4 feet: 22047327SR International, 10 feet: 25380201SR |
|
|

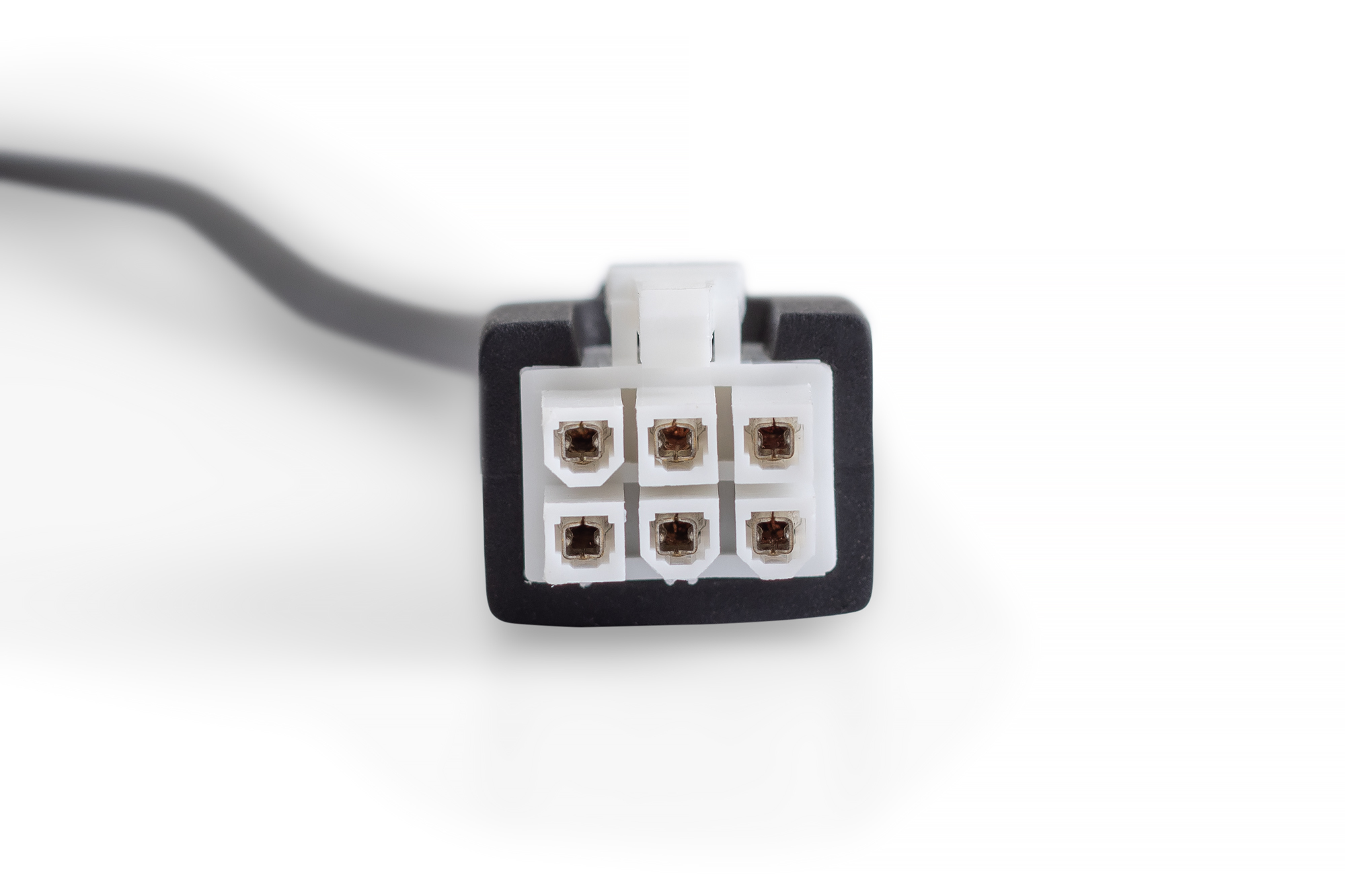

Cable Package includes:
|
58” W or smaller: 1503688001SR
Greater than 58” W: 1503688002SR |
|
|

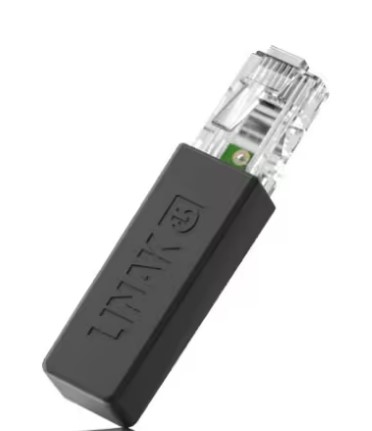

Obstruction Detection Sensor
Tip: Standard on all widths. |
1438965001SR | |
|

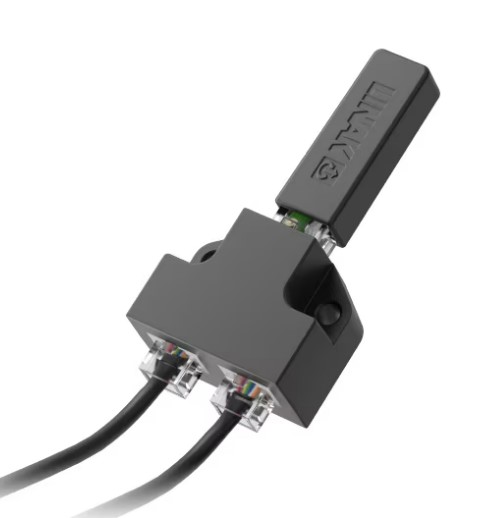

Obstruction Detection Kit includes:
Tip: A second detection sensor, t-splitter and splitter cable is standard on widths greater than 78". |
HAODKT10 | |

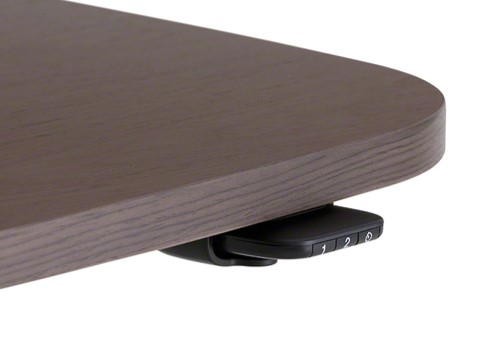

| Simple Touch Controller | 1093294001SR | |

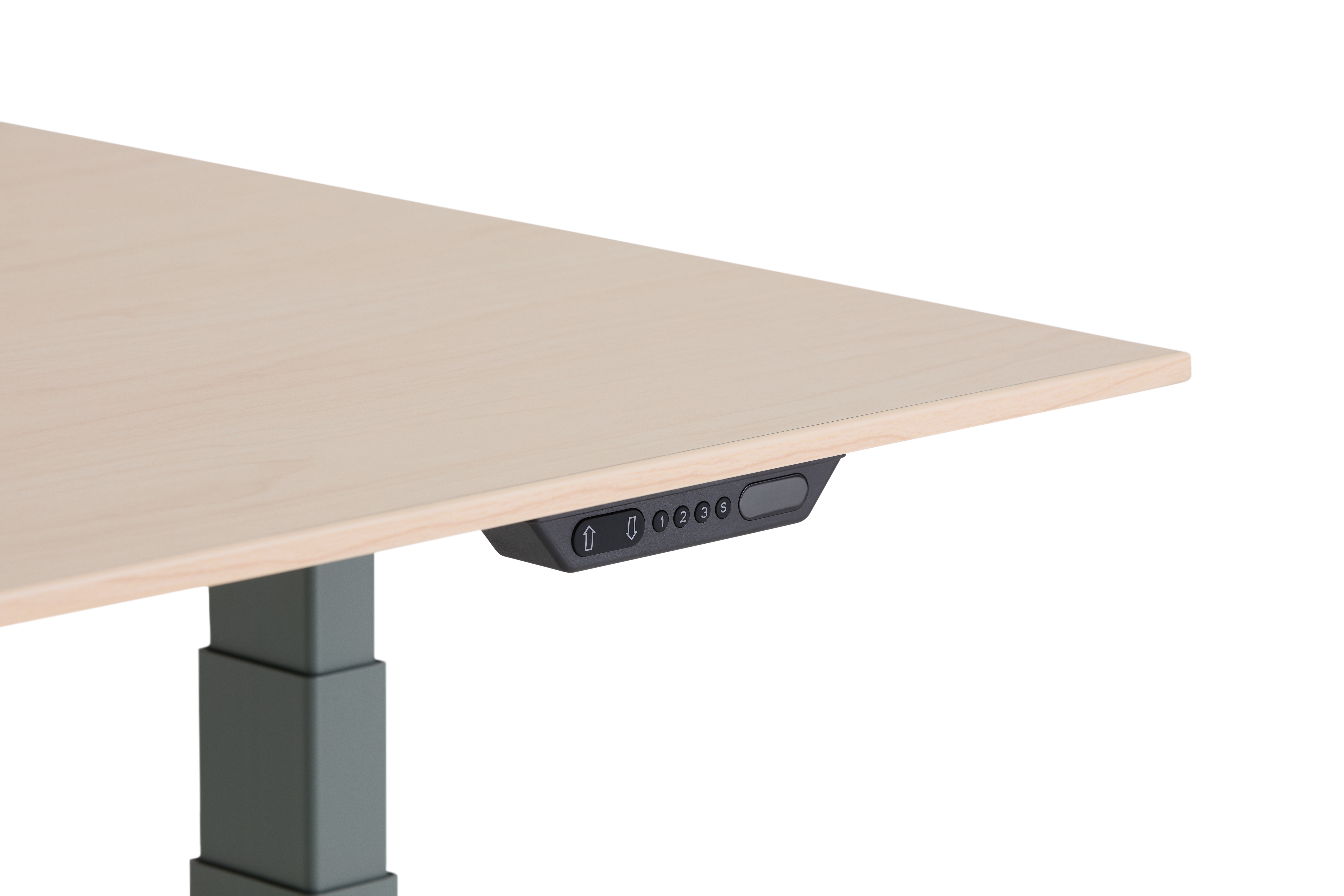

| Active Touch Controller | 1093247001SR | |
| 3 Preset Controller | 15313303SR |
