❗️ Service Tech Recommended ❗️
If a desk becomes unresponsive, check individual parts for function.
A | TEST LIFTING COLUMNS
For ease of troubleshooting, support the desk with a pair of sawhorses or flip desk over.
- Unplug the Low-Voltage Cable(s) from the Control Box, except for Port 1.

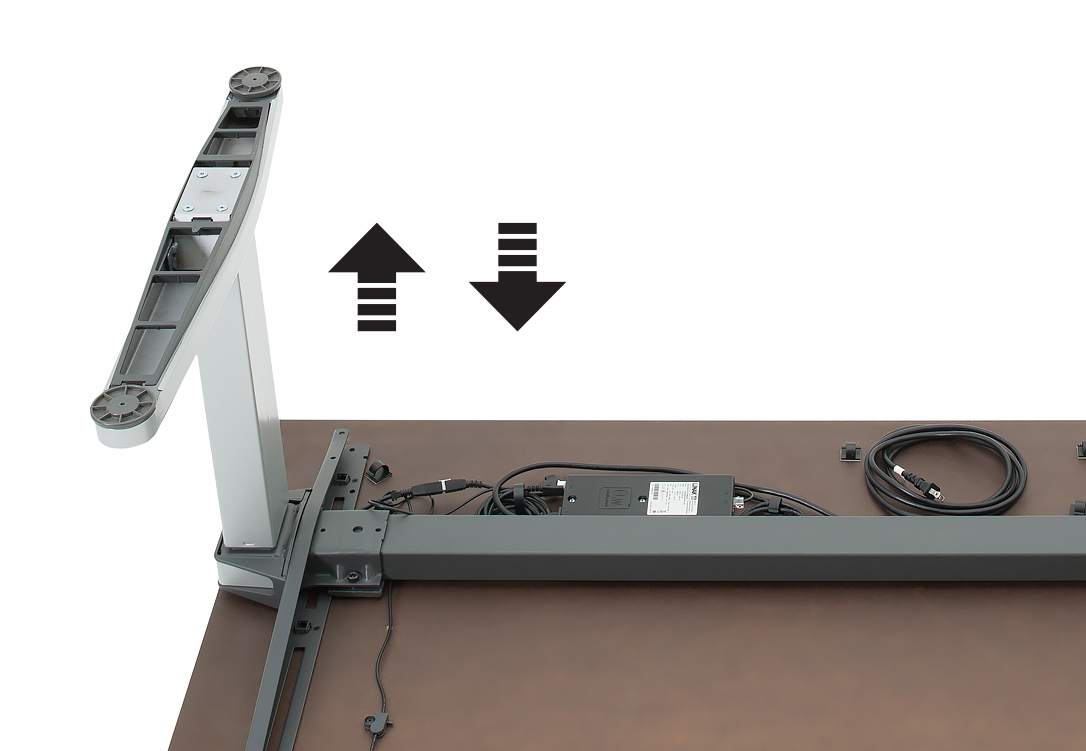

- Adjust the Lifting Column all the way up and down.
- Tip: If the leg adjusts through the full height range, the Lifting Column, Control Box, Controller and Power Cord are functional.
- If it does not move, replace the non-working Lifting Column. After the Lifting Column is replaced, synchronize the desk.
- Check other Lifting Column(s) by plugging the Low-Voltage Cable into Port 1 and adjusting the Lifting Column all the way up or down.

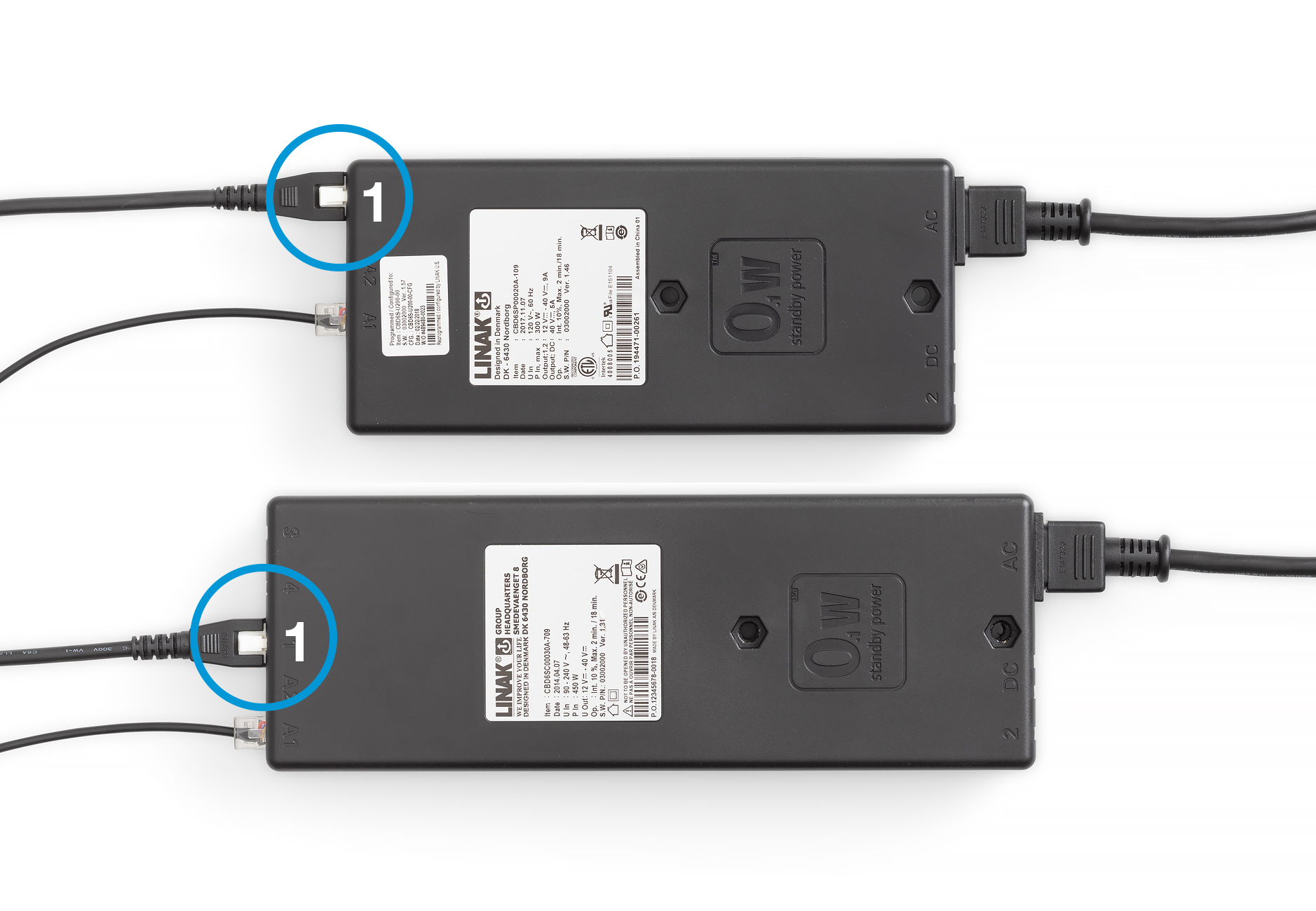

- Tip: The desk will only function if a Low-Voltage Cable is plugged into Port 1.
B | TEST CONTROL BOX
- Follow the Test individual Lifting Columns steps to verify the Lifting Column, Controller, Low-Voltage Cables and Power Cord are functional.

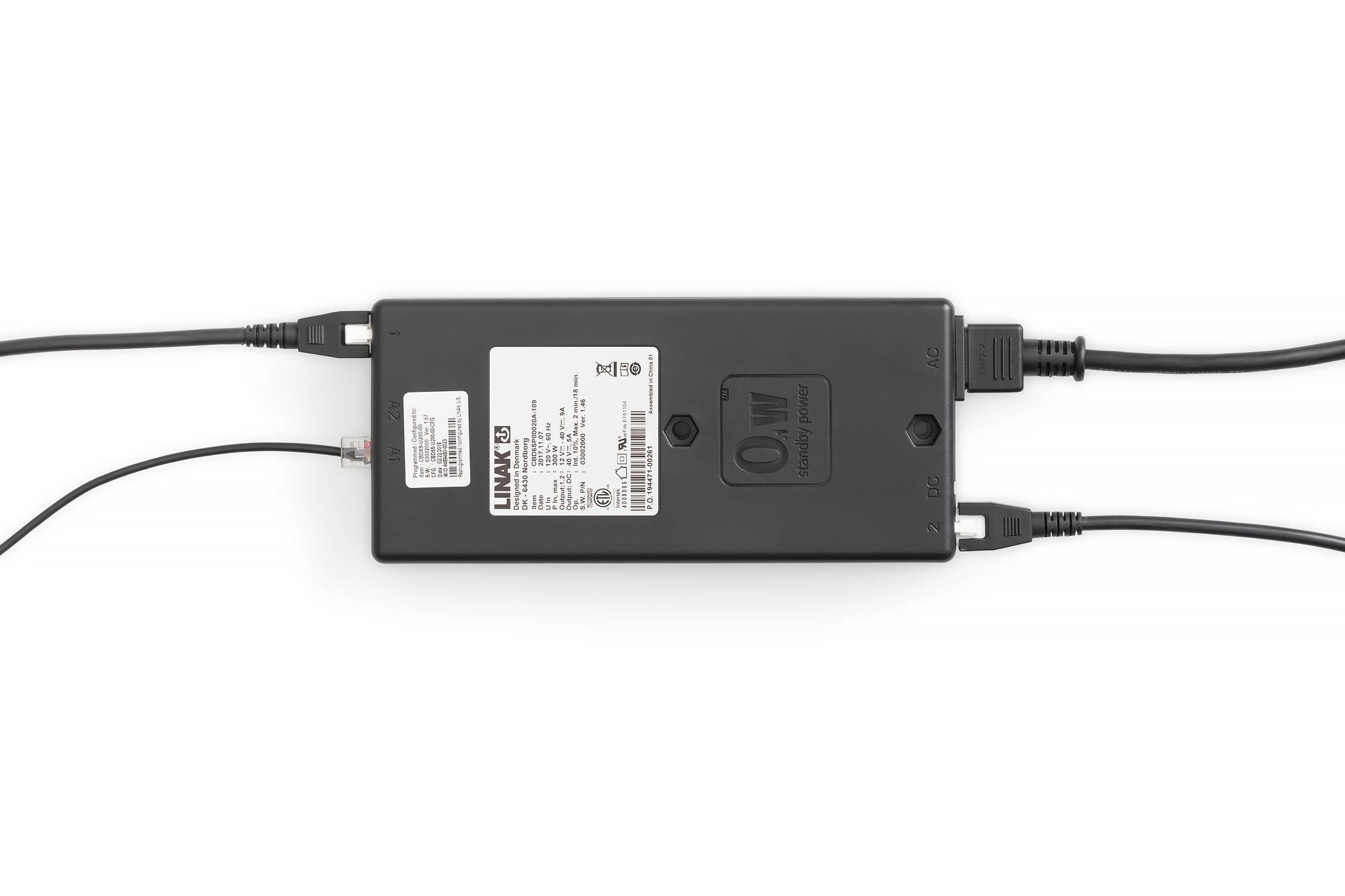

- Keep the Low-Voltage Cable of leg 1 plugged into Port 1, and plug-in the Low-Voltage Cable of leg 2 in Port 2.
- Adjust the Lifting Columns all the way up and down. Repeat with leg 3 plugged into Port 3, if necessary.
