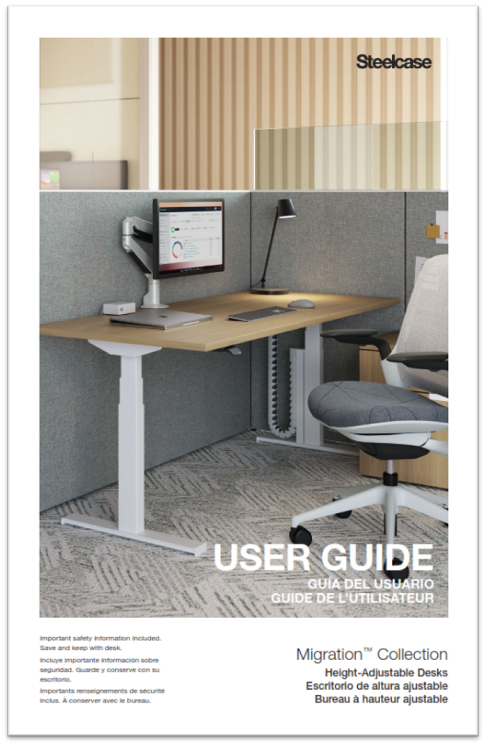

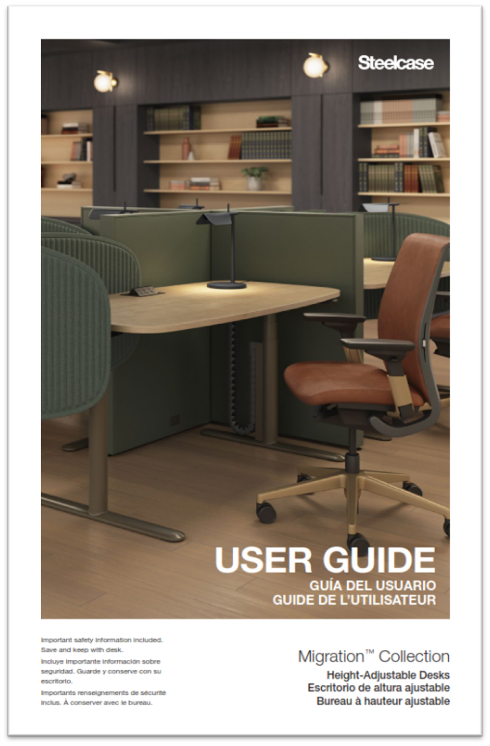

To download the Migration Collection User guide, click here.

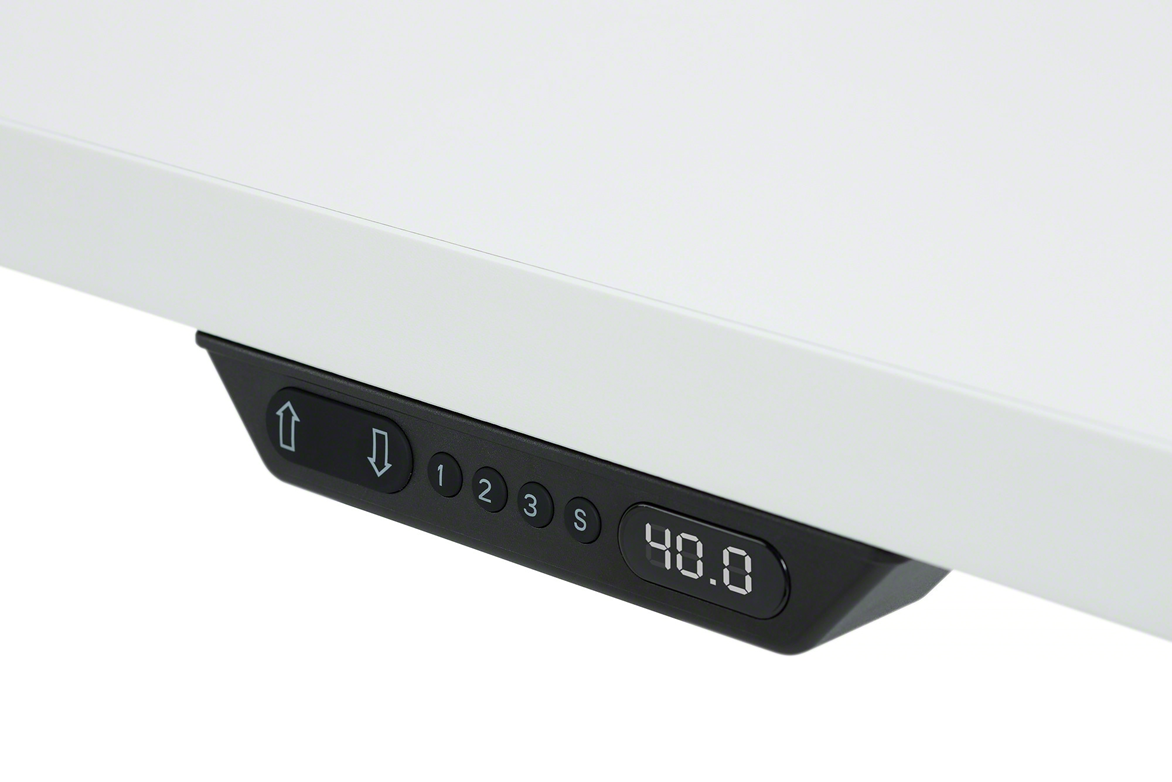

Operating the Controller
- Press and hold either the up or down button to reach the desired height. The digital controller will display the current height of the desk.
- To adjust to a stored height in memory, use the three memory position buttons.
- A) Press and hold the numbered button that has the saved height stored into memory.
- B) The desk will raise or lower until it reaches the stored height. The controller will display the current height of the desk as it adjusts.
- The digital display will turn off after 10 seconds of no activity. Press the up, down or preset button to activate the display.
- The user must continuously hold down the button in order for the desk to
move.
Store Height Into Memory
To set into memory the desired height for either seated or standing work, use the three memory position buttons.
- Press either the up or down button to reach the desired height.
- Press the s button once.
- The display will flash s for 2 seconds. During this time press your choice of memory position buttons 1-3 to set that particular height. The display will store by showing 1, 2 or 3 for 1 second.
To save additional heights repeat this sequence using the remaining two buttons
Adjusting The Height Displayed
The controller will show 22.6" at its lowest setting which is the default setting from the factory. If you need to adjust the height displayed:
- At the same time, press the up and down buttons for 5 seconds. The display will show --- (three dashes), then the display will show the height.
- Adjust the displayed height using the up or down buttons. After 5 seconds of inactivity the height will blink once setting the new height.
NOTE: This controller does not allow switching from inches to centimeters.
Error Codes
In the event of a fault, the digital display may show an error code. Refer to the error code list and troubleshooting guide for further instruction.
NOTE: Error codes will only be displayed when a button is pressed.
