Desk Movement is Not Smooth

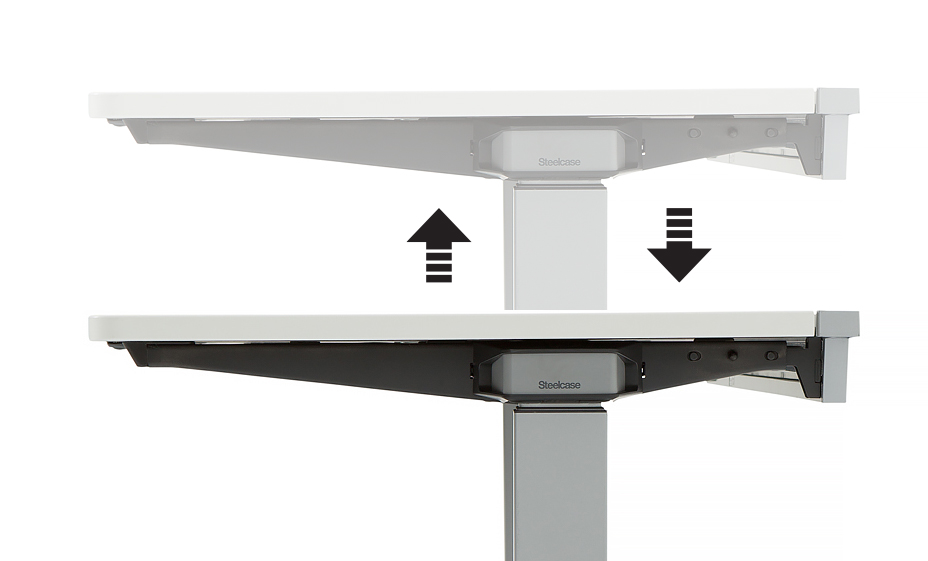

IF THE LIFTING COLUMNS JERK OR HOP WHEN RAISED OR LOWERED.

1. SYNCHRONIZE THE DESK

• View instructions on how to synchronize the desk.

2. CHECK GLIDES

• Check that the glides are properly adjusted, and the desk is level.

STEPS 3-6 ❗️ SERVICE TECH RECOMMENDED ❗️

3. TEST INDIVIDUAL LIFTING COLUMNS.

• View instructions on how to test individual Lifting Columns here.

4. LOOSEN SCREWS

• Loosen (but do not remove) all the screws attaching the Lifting Columns to the worksurface.

5. ADJUST DESK AND RE-TIGHTEN SCREWS

• Adjust the desk all the way up and all the way down, then re-tighten worksurface attachment screws.

6. IF THE LIFTING COLUMNS ARE STILL BINDING

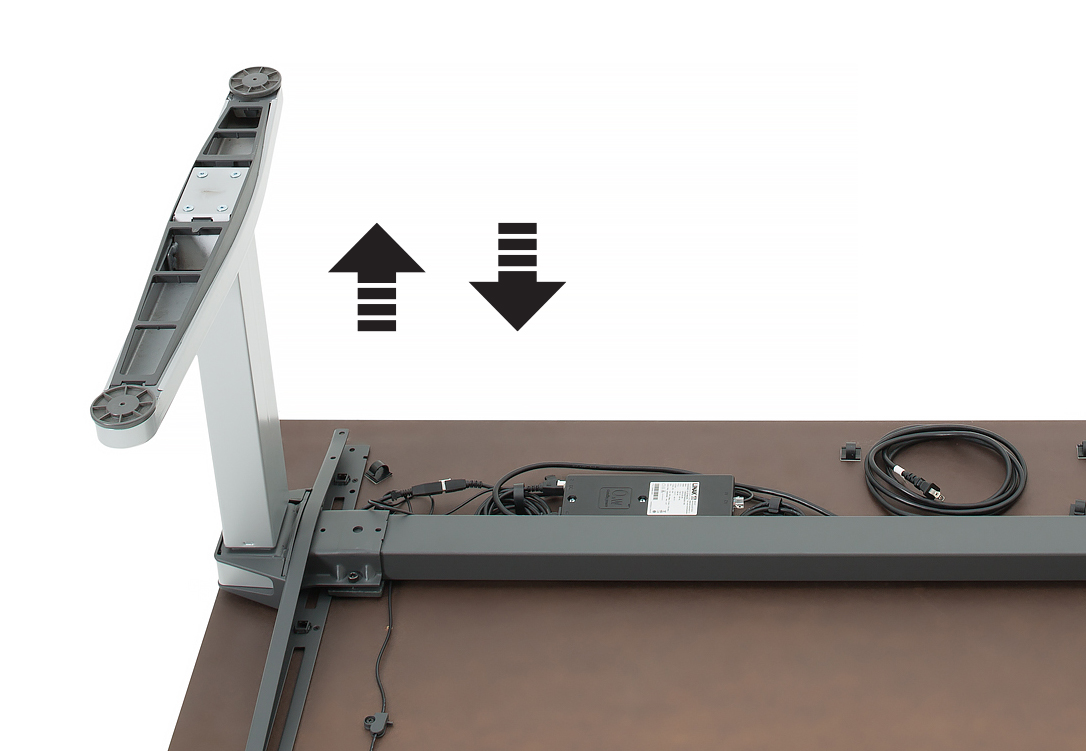

• Take everything off the desk, flip it upside down and remove the worksurface screws completely.
• Adjust the desk all the way up and all the way down.

• The position of the Lifting Columns may shift slightly
• Re-install worksurface screws in the adjusted position.
